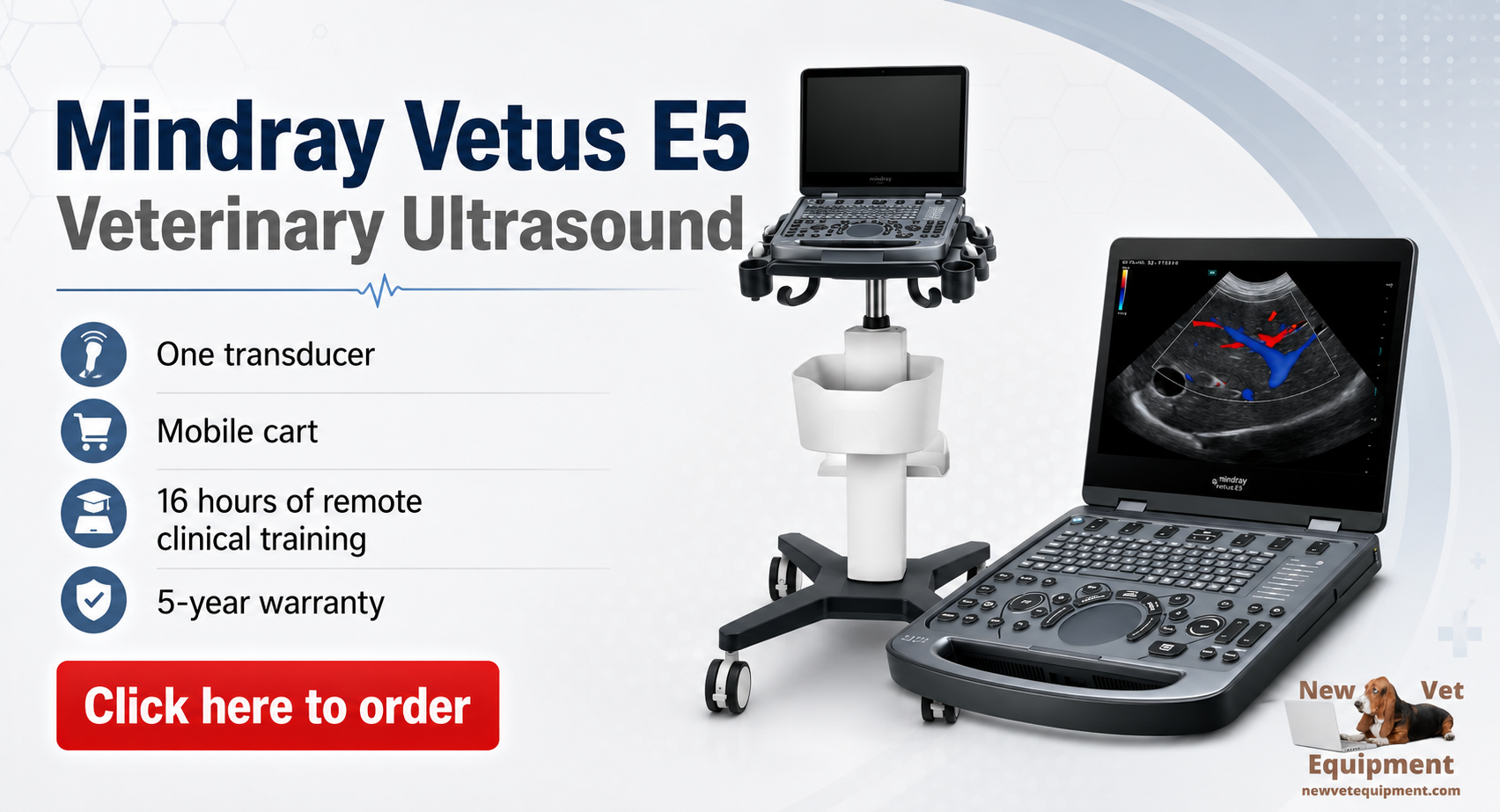

Mindray Vetus E5 Veterinary Ultrasound
Finally, an ultrasound that has precisely what the Veterinary needs: Great Image Quality!
We are not allowed to post the price on the website.
The Vetus E5 competes head-to-head with Sound, Antech, Mars, and GE Logiq-E systems—without the inflated price, saving you tens of thousands upfront.
📞 Call Us: 877-545-1202
The Vetus E5 system comes complete:
with one transducer
a mobile cart
16 hours of remote clinical training
and a 5-year warranty.

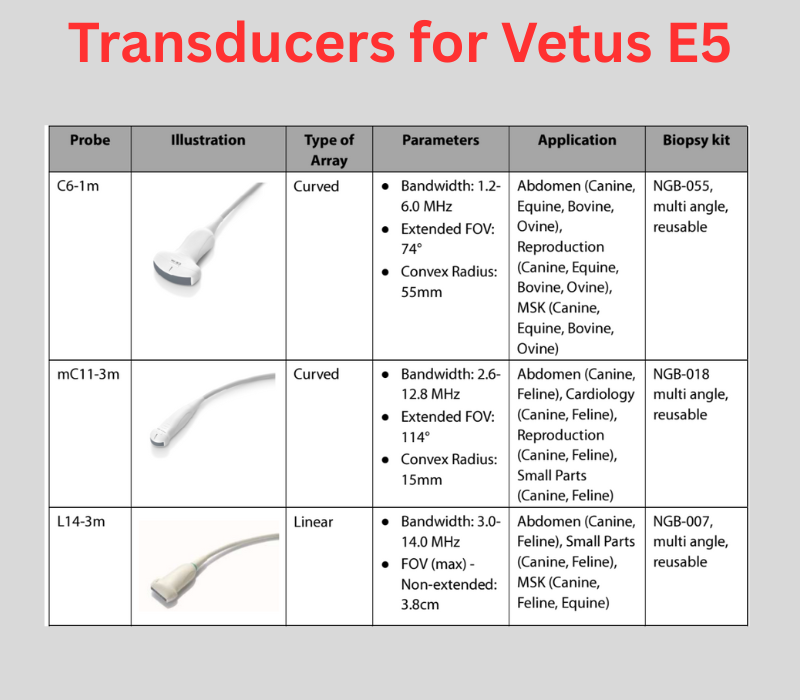

Pick any of these transducers:
120-00068A-00 Micro-convex mC11-3m Vet Ultrasonic Probe(INT)
120-00069A-00 Convex C6-1m Vet Ultrasonic Probe(INT)
120-00070A-00 Linear L14-3m Vet Ultrasonic Probe(INT)
Add a 2nd or 3rd transducer for $4k each.
Precision in Mind, Simple in Design
The Mindray Vetus E5 is designed to enhance veterinary ultrasound scanning, making it faster, more transparent, and easier for your team. With advanced imaging technologies, intuitive controls, and a durable design, the Vetus E5 delivers confidence in every diagnosis.
Elegant Touch, Intuitive Control
Touch-sensitive gain adjustment for fingertip precision
TGC integrated controls that are easy to adjust, even in dark rooms
Built for Daily Demands
Waterproof, dustproof, and hair-resistant control panel
Simple to clean and disinfect, built for long-term use
Image Clarity That Stands Out
HR Flow for detailed visualization of blood flow patterns
iClear to reduce speckle noise and sharpen tissue boundaries
iTouch for one-click image optimization
Natural Touch Elastography for tissue stiffness assessment
Contrast Imaging for enhanced diagnostic accuracy
Tools for Confident Diagnosis
Smart Calc for automatic lesion tracing and measurement
Smart HRI for quantitative liver steatosis assessment
iWorks with pre-set, animal-specific scanning protocols
iReport with customizable professional report templates
Designed for Veterinary Workflow
Lightweight and portable for mobility
Extended battery life for uninterrupted use
Multiple connectivity options for fast sharing
Quick probe connection and switching
Large storage capacity for easy case management
Why Choose the Vetus E5?
The Mindray Vetus E5 combines cutting-edge diagnostic tools with a rugged, veterinarian-friendly design. From small-animal abdominal scans to advanced soft-tissue evaluations, this system is built to deliver reliable results and improve workflow efficiency.
15.6" high-resolution LED monitor for precise, detailed imaging
Optimized for abdominal ultrasound applications
Basic cardiac ultrasound capability
POCUS-ready for rapid point-of-care assessments
Evaluates cardiac function and chamber size
Detects fluid presence, including pericardial effusion
Supports standard cardiac views: parasternal long axis, parasternal short axis, apical four-chamber, and subcostal
Ideal for emergency and critical care use
Standard two active transducer sockets
Seamless panel, anti-splash
100% Raw Data of Imaging Processing Technology
1TB SSD
Standard Software Included:
B/M/Color/Color M/Power/Directional Power/PW/HPRF
PSH (Phase Shift Harmonic Imaging)
iBeam (Spatial Compounding Imaging)
iClear (Speckle Suppression Imaging)
iTouch(Auto Image Optimization)
HR Flow(High Resolution Flow)
HD Scope
iStation (Animal Information Management)
iScanHelper(Smart Scanning Assitant)
iWorks(Standardized Veterinary Workflow Protocol)
iMeasure (Intelligent Reference for Vet Measurement)
iReport (Vet Report Management System)
iStorage (Intelligent tool for transferring the images and reports to PC)
iCompare(multi-modality imaging compare)
MedSight (Support IOS/Android devices)
MedTouch(Support IOS/Android devices)
Gallery Drop(QR Code image sharing)
E-mail sending
Shared Service Calculation Package (includes General/Abdomen, Reproduction,
Vascular, Small Parts）
DICOM Basic, Worklist
iScape View
iNeedle
Smart Bladder, Smart HRI, Smart Track, Smart Calc, Smart Trace
DVR(Digital Video Recorder)
Peripherals Included:
AC Adapter with US power cord and Lithium-ion Battery
Built-in Wireless Adapter
