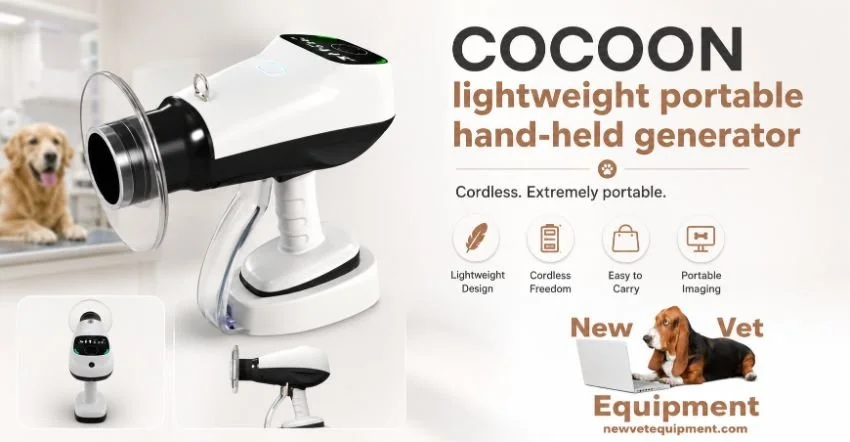

COCOON Lightweight Portable Handheld X-Ray Generator
Cordless, lightweight X-ray power designed for convenient veterinary imaging
$6,000
Price when purchased separately
Portable Imaging That Fits the Way You Work
When you need to take an X-ray, moving the patient to a fixed system is not always the easiest or most efficient option.
The Dexcowin COCOON is a lightweight, gun-style handheld X-ray generator designed to give veterinarians greater freedom when positioning patients and capturing images.
Its cordless design, one-handed operation, touchscreen controls, and enhanced battery capacity help make veterinary imaging more convenient in dental areas, treatment rooms, mobile units, and other space-limited environments.
Designed to Make Veterinary Imaging Easier
Lightweight and Portable
At approximately 4.8 pounds without the backscatter shield, the COCOON is compact enough to move easily between treatment areas or take into the field.
One-Handed Operation
The gun-style grip and trigger are designed to support comfortable one-handed positioning and exposure.
Flexible Detector Compatibility
The COCOON is designed to work with a variety of compatible digital detectors and other veterinary imaging systems.
Extended Battery Capacity
A fully charged battery can support up to approximately 500 exposures, depending on operating conditions and selected exposure settings.
Simple Controls for a Smoother Workflow
- Wide user-interface screen for easier viewing and operation
- Touch-key controls for quick setting adjustments
- Custom exposure presets to support a more consistent workflow
- Pre-recorded voice guidance to assist with initial operation
- Verbal introduction guide to help users become familiar with the system
Safety Features Built Into the Design
Proper training, positioning, shielding, and compliance with applicable radiation regulations remain essential when operating any X-ray system. The COCOON also includes several features designed to support safer operation:
- Lead-coated generator and cone designed to help limit radiation leakage
- Lock Mode and a locking trigger to help prevent unintended exposure
- Backscatter shield designed to provide additional operator protection
- Neck strap for added security, handling comfort, and accident prevention
Technical Specifications
| Product Name | COCOON |
| Model | DX7017 / DX7020 |
| Tube Voltage | 70 kV |
| Tube Current | 2 mA with external power / 1.7 mA with internal battery |
| Focal Spot | 0.4 mm |
| Power Consumption | 336 VA / 321 VA |
| Cooling Method | Oil cooling |
| Total Filtration | More than 2.3 mm Al, including 1.0 mm Al inherent filtration |
| Target Angle | 12.5 degrees |
| Exposure-Time Range | 0.05–1.0 seconds |
| Exposure-Time Increments | 0.01 seconds |
| Target-to-Focal-Spot Distance | 18 cm (7 inches) |
| Dimensions | 322 mm L × 134 mm W × 262 mm H |
| Weight | Approximately 4.8 lbs., excluding the backscatter shield |
| Battery | 16.8 V |
| Battery Exposure Capacity | Up to approximately 500 exposures on a full charge |
Need the COCOON User Manual?
Call us and we will provide the user manual and help answer your questions about operation, compatibility, and setup.
Let’s Make Sure It Fits Your Practice
Choosing a handheld X-ray generator involves more than comparing specifications. It should also fit your detectors, imaging needs, workflow, and local radiation requirements.
I can help you:
- Review how you plan to use the generator
- Discuss compatibility with your current imaging equipment
- Explain what is included and what may need to be purchased separately
- Decide whether the COCOON is a practical fit for your practice
