Vetist 3 Veterinary Cone Beam CT Imaging System
Advanced Veterinary CBCT Imaging — Four Imaging Modes in One System
- 3-Year Warranty
- Technical Support
- Software Updates
- Shield Plan
- Shipping and Installation
Advanced Veterinary Imaging in One System
Give your veterinary team a clearer view of what is happening inside your patients.
The Vetist 3 is a veterinary Cone Beam Computed Tomography (CBCT) imaging system that combines four imaging capabilities: CT, digital radiography (DR), fluoroscopy (FL), and panoramic imaging.
With fast scanning, detailed images, advanced 3D reconstruction, and specialized veterinary imaging software, the Vetist 3 helps veterinarians evaluate complex cases and make more informed diagnostic decisions.
The system is designed for veterinary practices looking to expand their diagnostic capabilities while bringing multiple imaging functions together in one piece of equipment.
Four Imaging Modes in One System
Choose the imaging mode that best fits your patient's diagnostic needs.
1. Cone Beam CT Imaging
Detailed cross-sectional imaging with 600–1,000 reconstruction slices, 0.2 mm minimum slice thickness, and advanced 3D reconstruction capabilities.
2. Digital Radiography (DR)
Digital X-ray imaging for routine veterinary examinations. Includes edge enhancement, multiple imaging algorithms, and tools such as TPLO, VHS, and TTA.
3. Fluoroscopy (FL)
Real-time dynamic imaging that allows veterinarians to observe internal structures in motion. The manufacturer describes continuous exposure capability of up to one minute.
4. Panoramic Imaging
Dental and jaw imaging designed to capture the full dental arch and jaw in one scan, supporting detailed evaluation of oral and dental structures.
Why Consider the Vetist 3?
- Fast CT Scanning: Complete a CT scan in approximately 4.5 seconds, according to the manufacturer.
- 600–1,000 Reconstruction Slices: Detailed CBCT imaging with advanced reconstruction capabilities.
- Ultra-Thin Slice Thickness: Minimum 0.2 mm slices help visualize small anatomical structures and lesions.
- Large Field of View: A maximum 72 × 42 cm field of view supports a variety of patient sizes and imaging applications.
- 80 cm Gantry Aperture: The large opening helps accommodate patient positioning.
- CT-AIR Breath-Hold Technology: A respiratory management platform designed to reduce breathing-related motion artifacts during imaging.
- Advanced 3D Imaging: Powerful reconstruction tools help veterinarians visualize complex internal anatomy.
- Four Imaging Modes: CT, DR, FL, and panoramic imaging in one integrated system.
- Smart Dose Management: Optimized scan settings are designed to help manage radiation exposure while maintaining image quality.
- Compact Imaging Solution: The manufacturer describes a system designed for efficient use of veterinary imaging space.
Advanced Imaging Technology
The Vetist 3 includes specialized imaging features designed to improve image quality and support a wider range of veterinary examinations.
CT-AIR Breath-Hold Platform
Uses a built-in respiratory device to help manage breathing during image acquisition. Designed to reduce respiratory motion artifacts and produce more stable CT images.
Triple-Phase Contrast Imaging
A one-click, automated triple-phase contrast imaging platform designed for more detailed evaluation of complex clinical cases.
Soft Tissue Imaging Mode
Optimized reconstruction algorithms help visualize soft tissue details and support lesion localization.
Large Animal Imaging Mode
Imaging settings designed for larger patient body sizes, including support for triple-phase contrast imaging applications.
Smart MAR Artifact Correction
Designed to reduce metal-related artifacts and improve visualization of surrounding anatomy, including orthopedic and postoperative cases.
Spectral Correction Technology
Multi-energy spectral optimization helps reduce beam-hardening artifacts and improve tissue contrast in CT images.

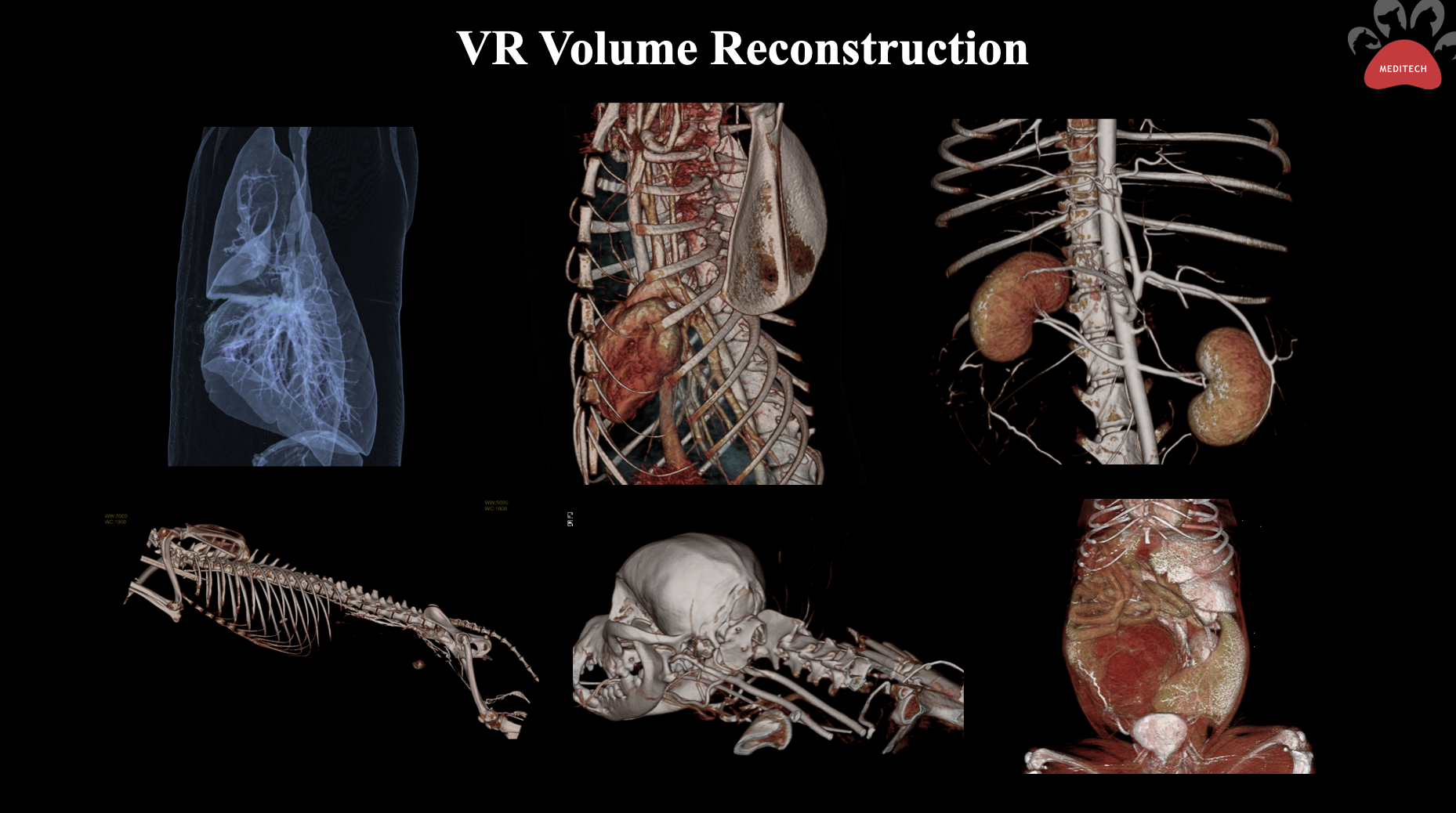

Vivid 3D Rendering
Advanced visualization tools help create detailed 3D views of internal structures for clinical image review.
Standardized Reporting
Image viewing and reporting software supports standardized examination reports and more consistent workflows.
Veterinary Imaging Applications
The Vetist 3 is designed to support a broad range of diagnostic imaging examinations.

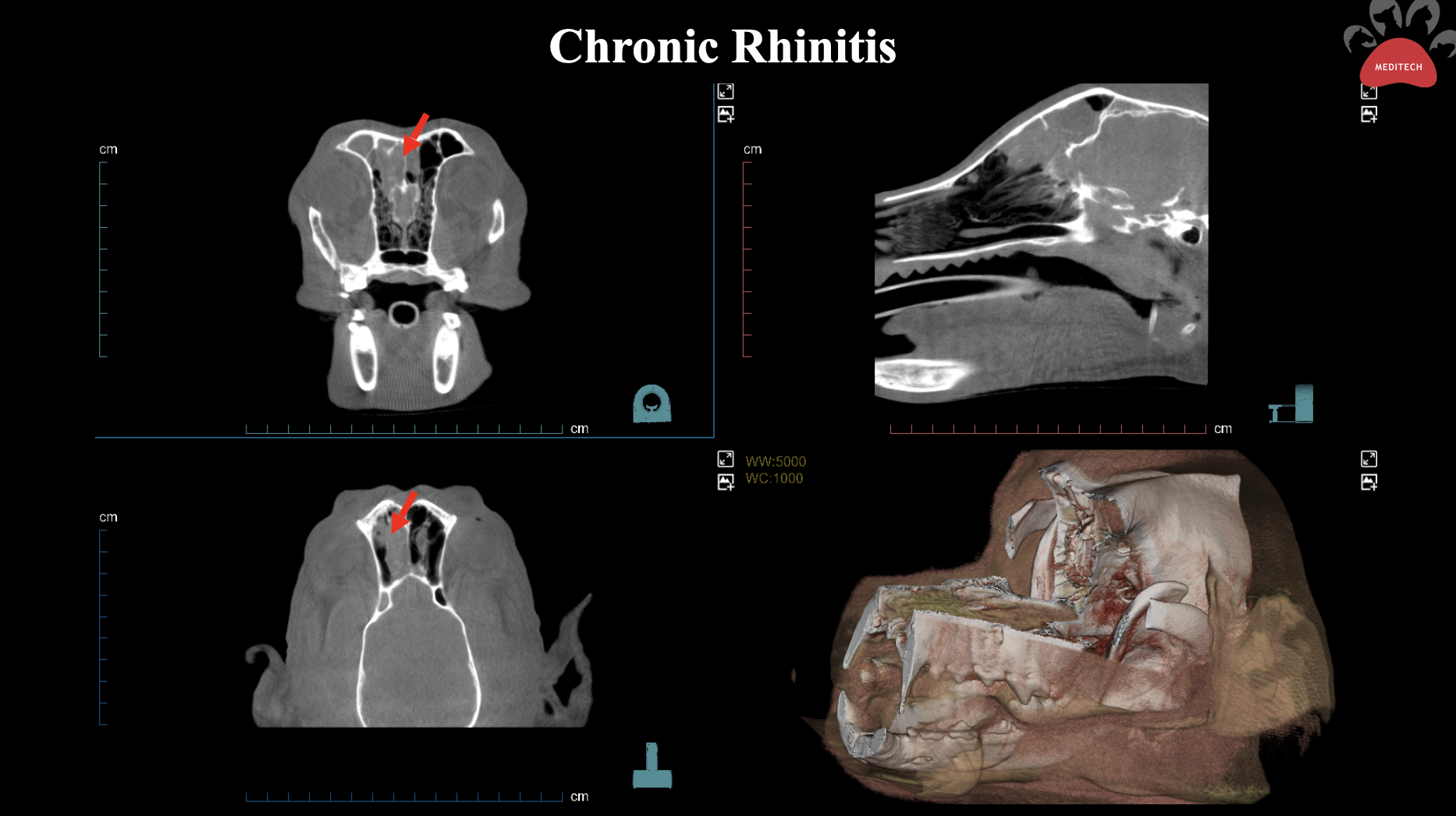

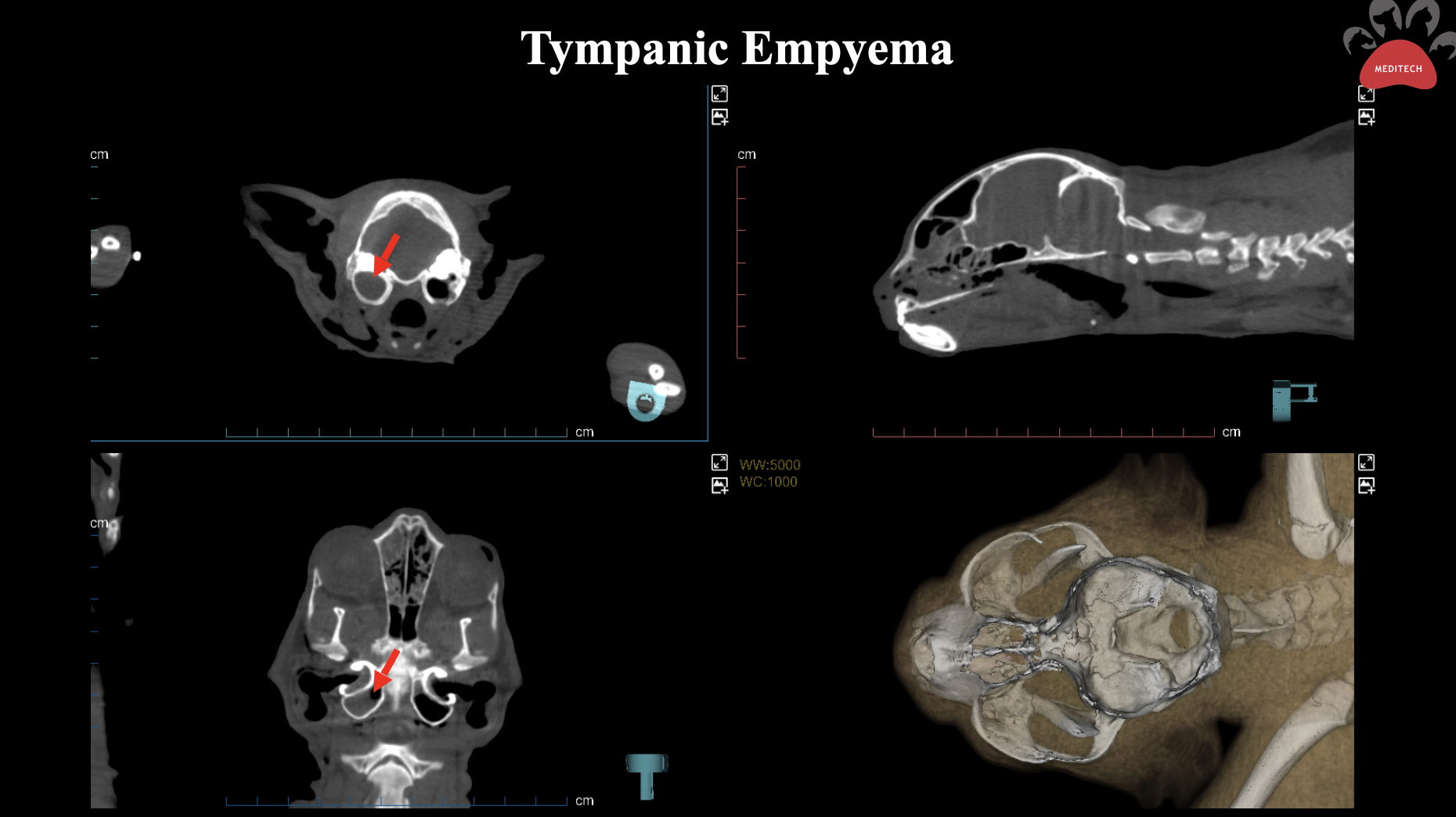

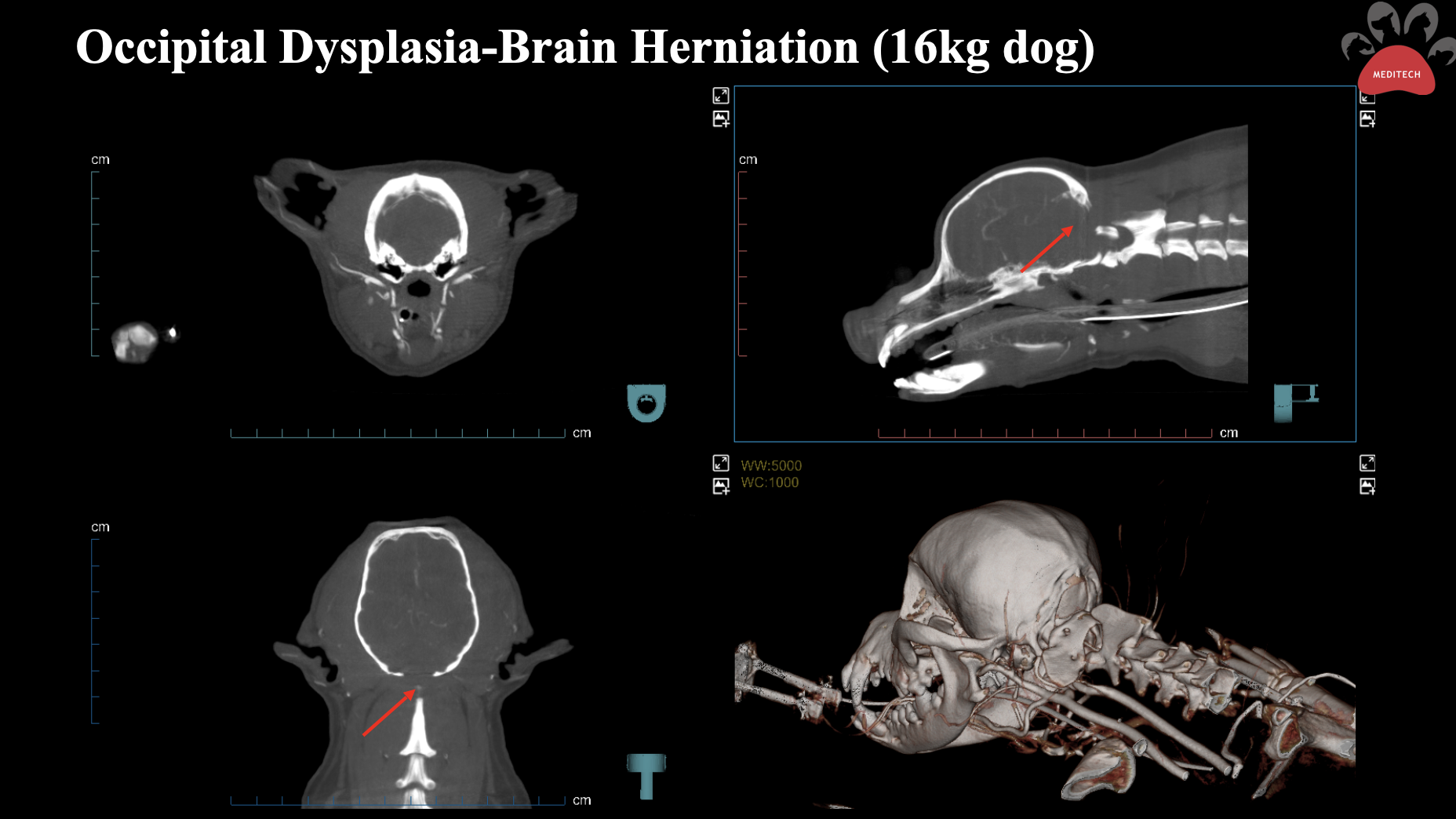

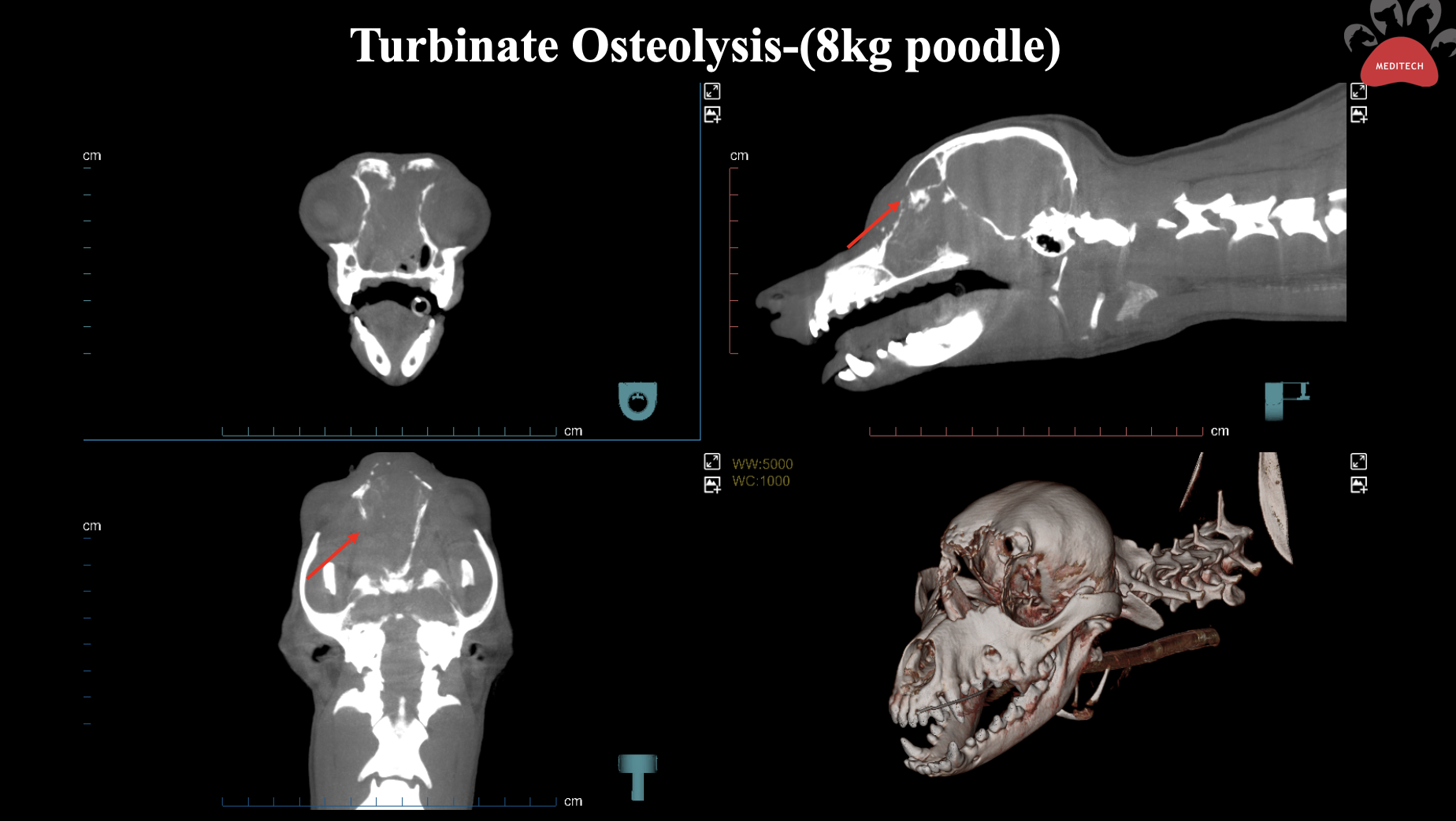

Head and Neck Imaging
Evaluate conditions involving the brain, nasal passages, sinuses, ears, and other head and neck structures.

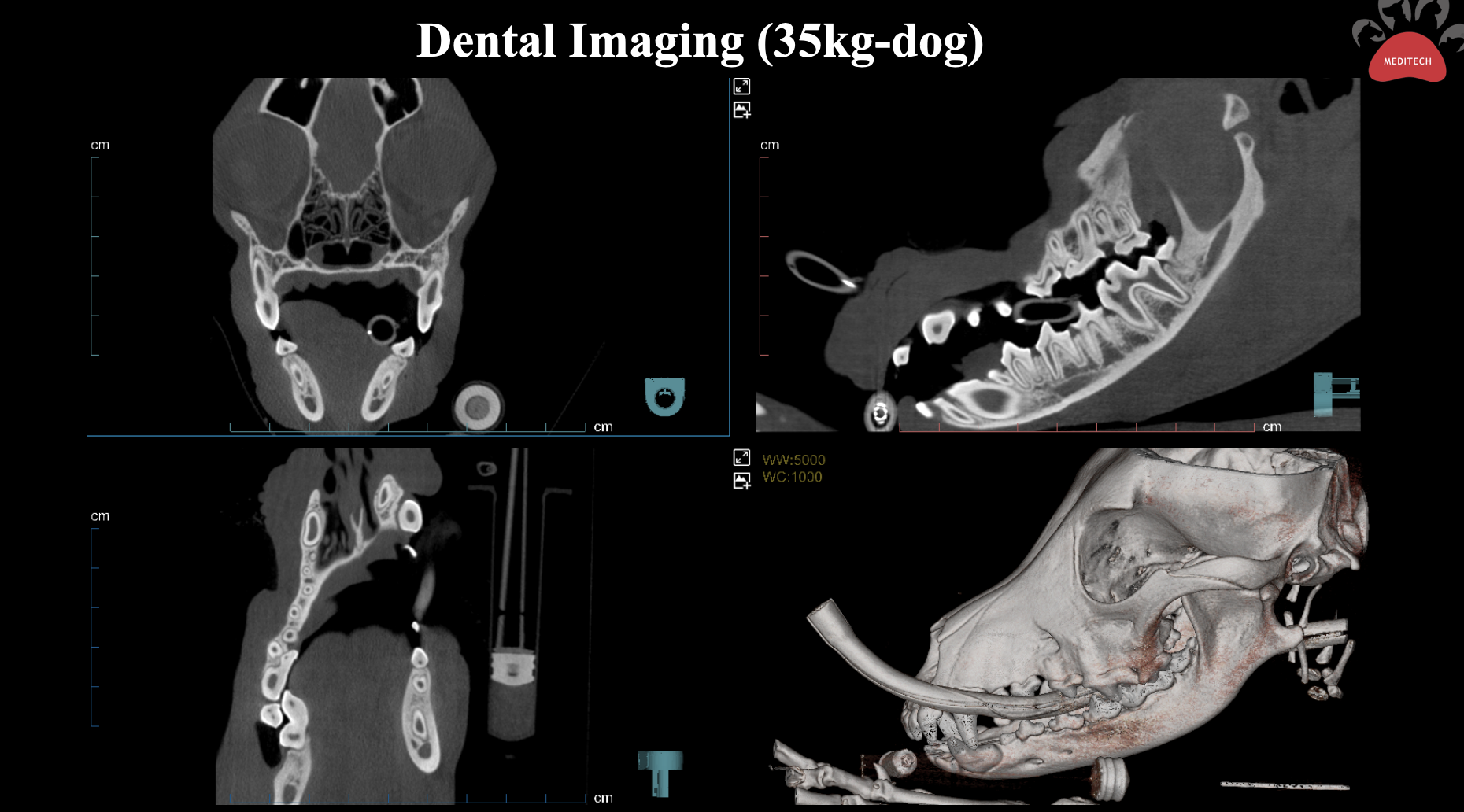

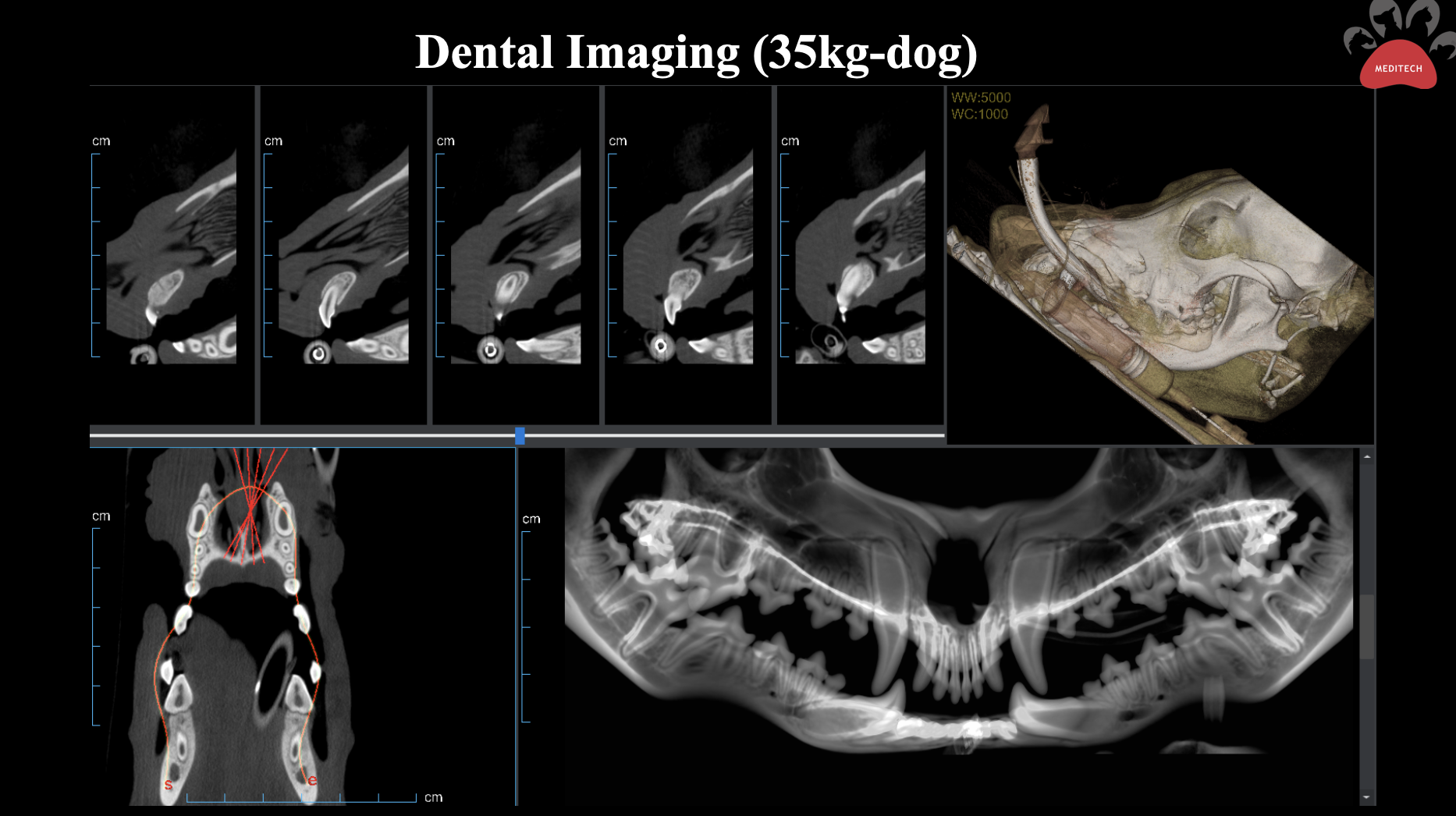

Dental and Jaw Imaging
Support evaluation of periodontal disease, tooth root abnormalities, dental abscesses, oral cysts, and surrounding bone structures.

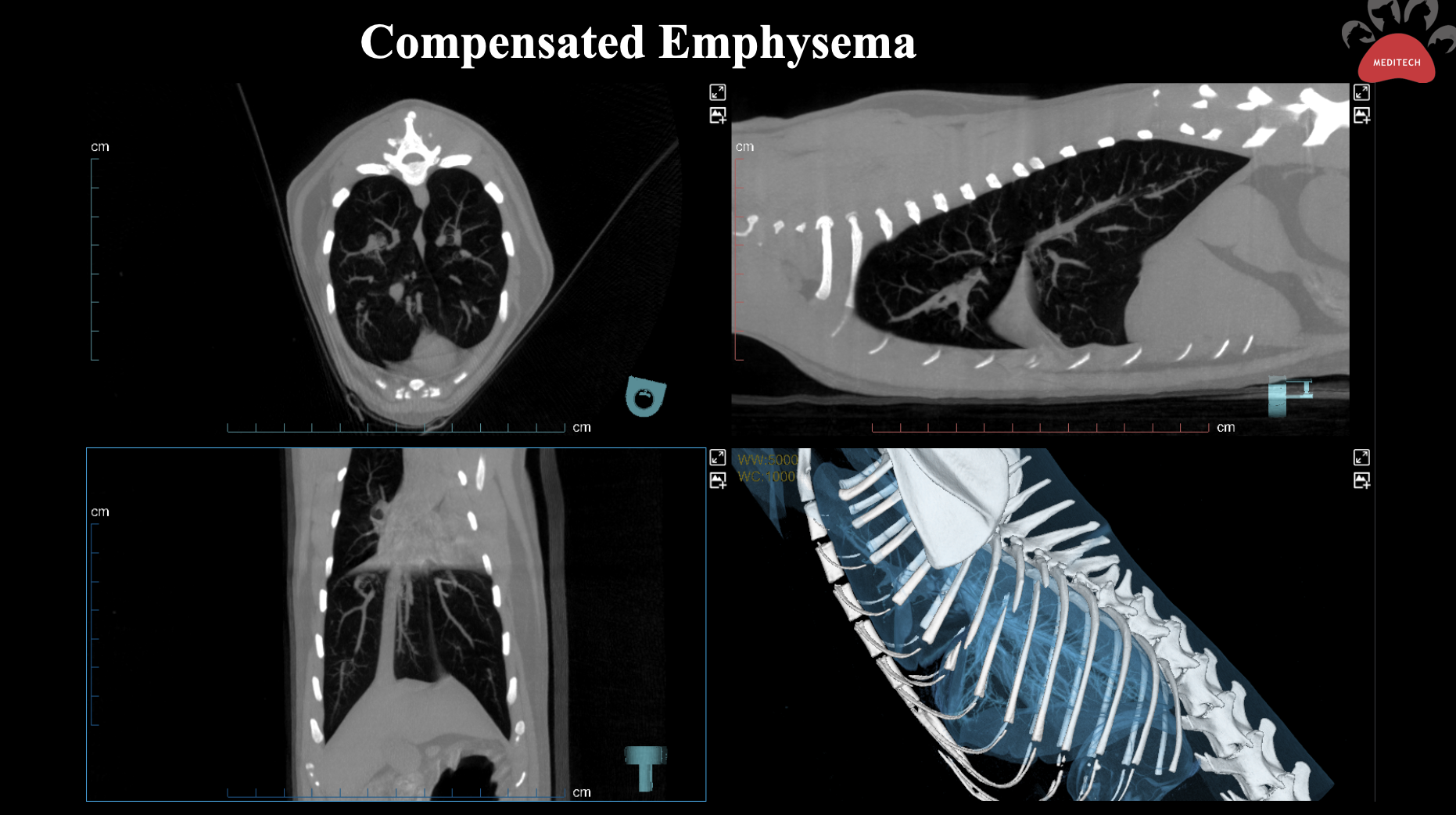

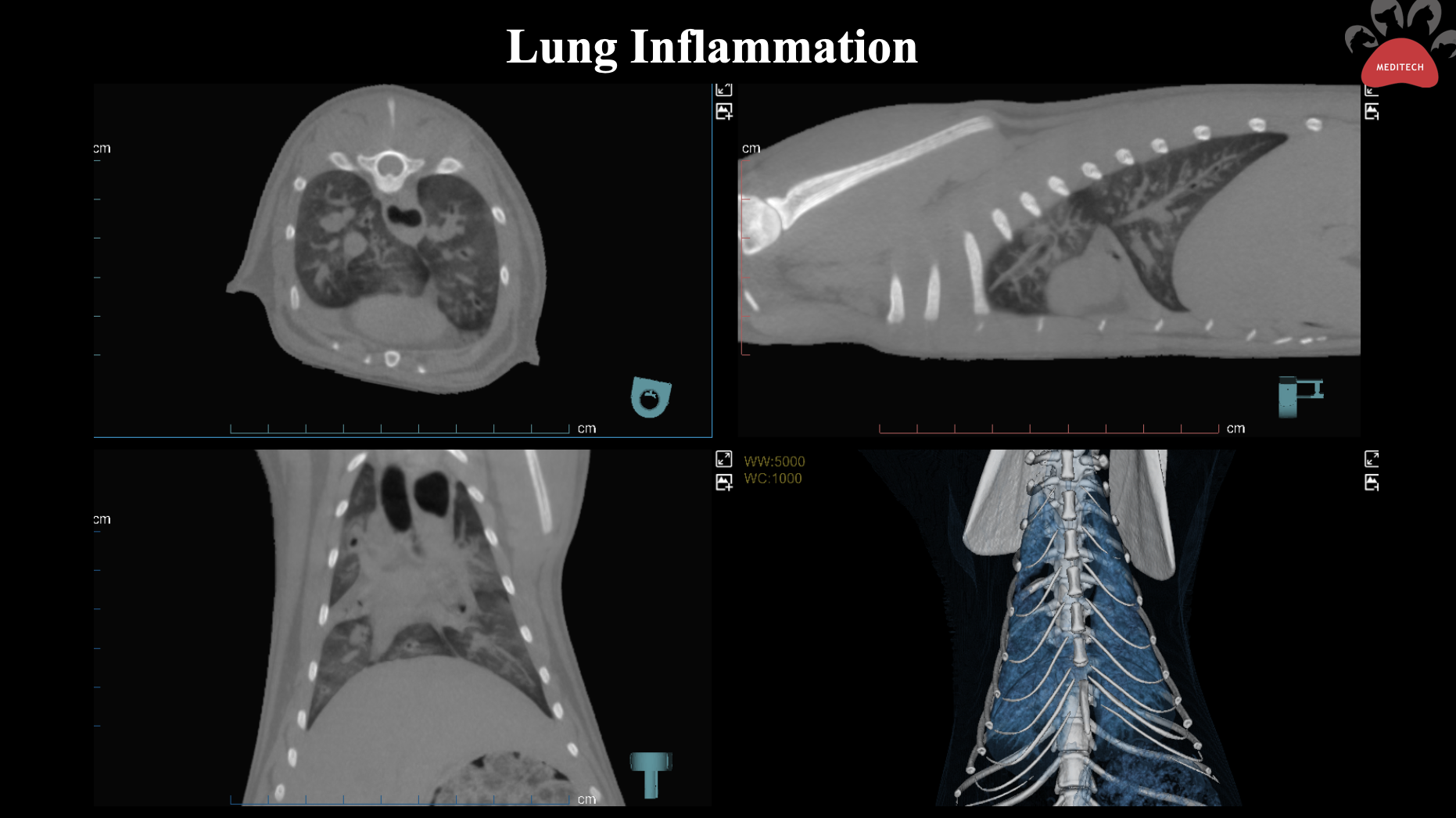

Chest and Lung Imaging
Examine thoracic anatomy, including pulmonary nodules, fluid accumulation, and inflammatory changes.

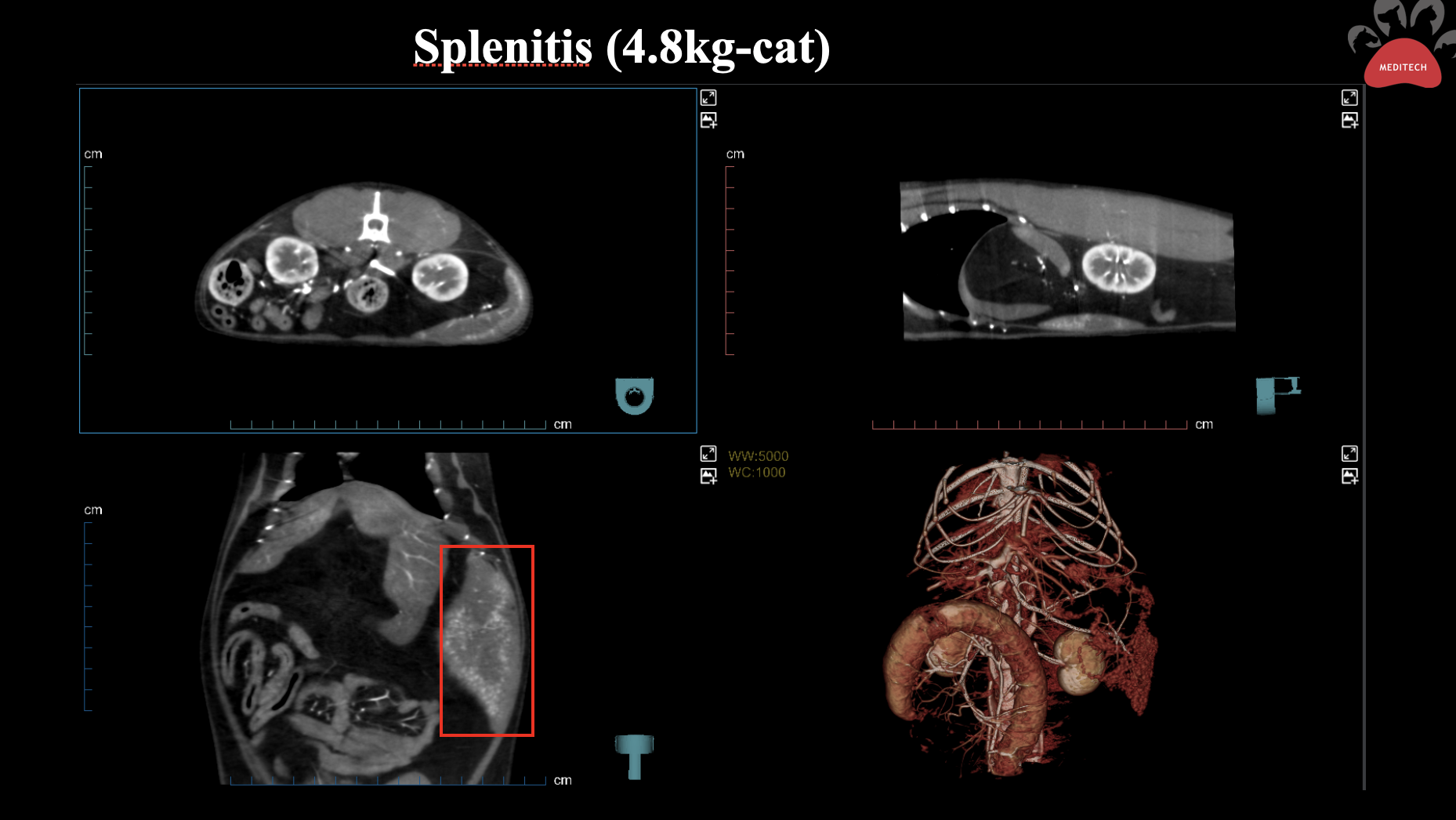

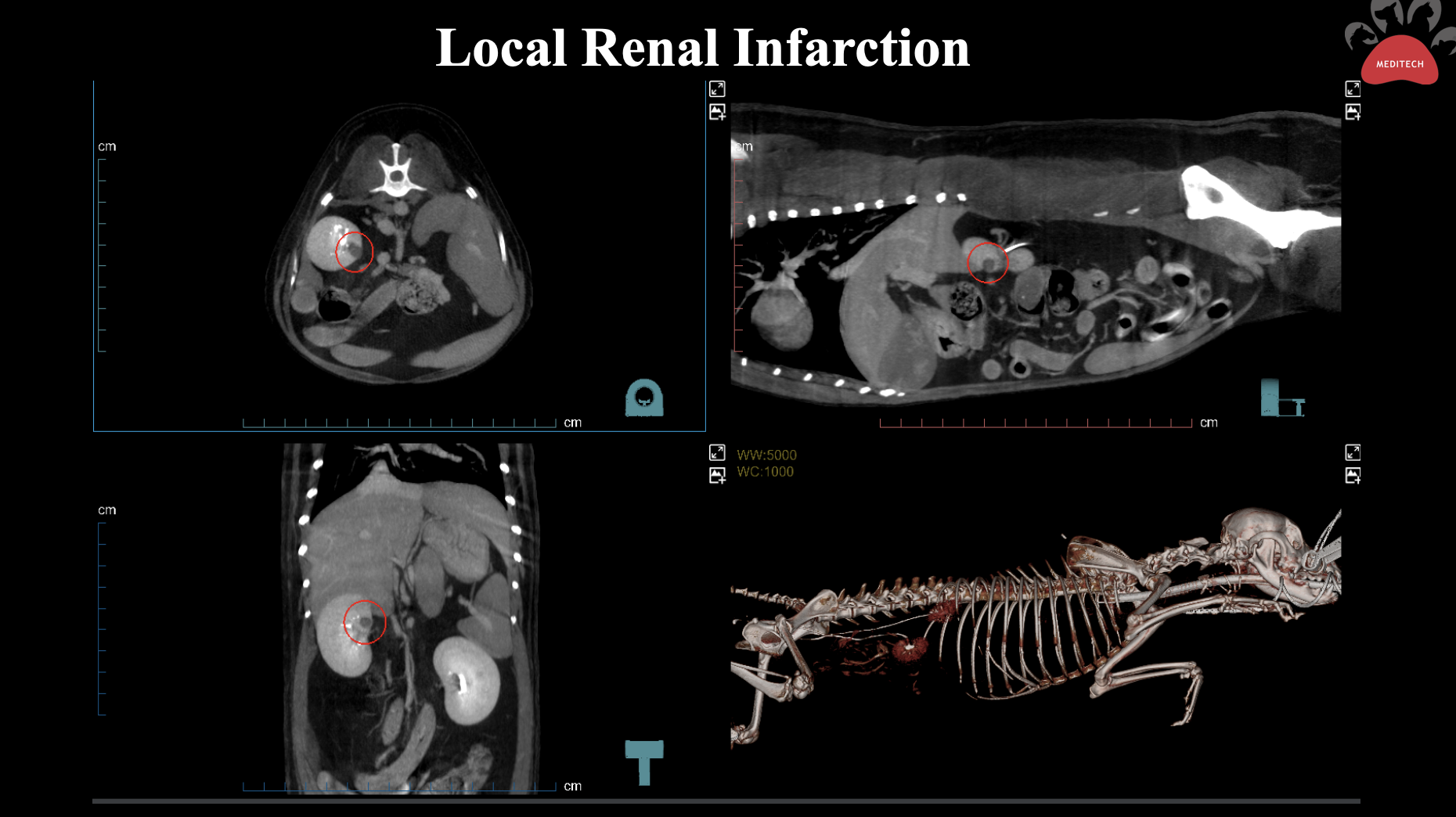

Abdominal Imaging
Evaluate abdominal anatomy, including the kidneys, pancreas, urinary system, and other internal structures.

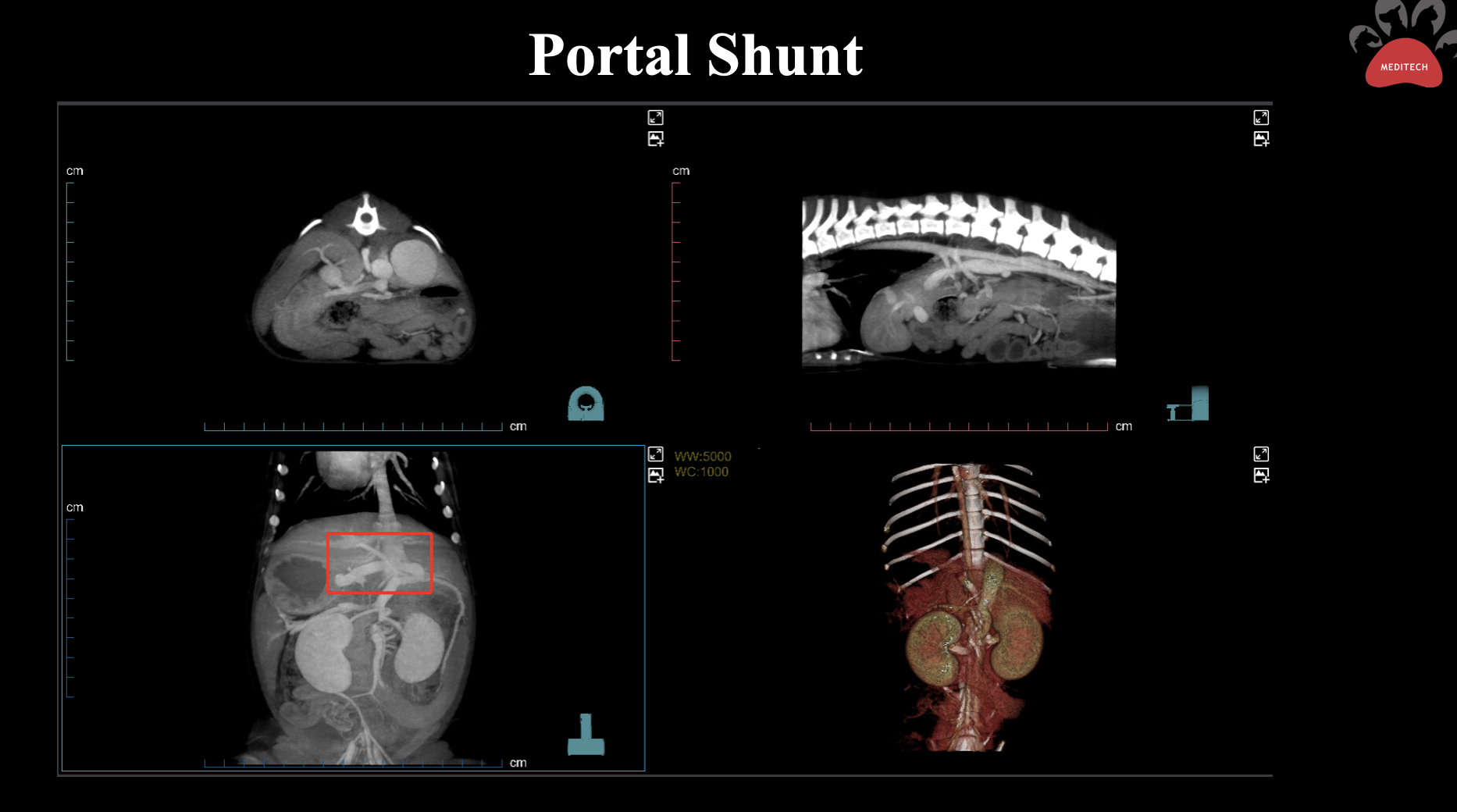

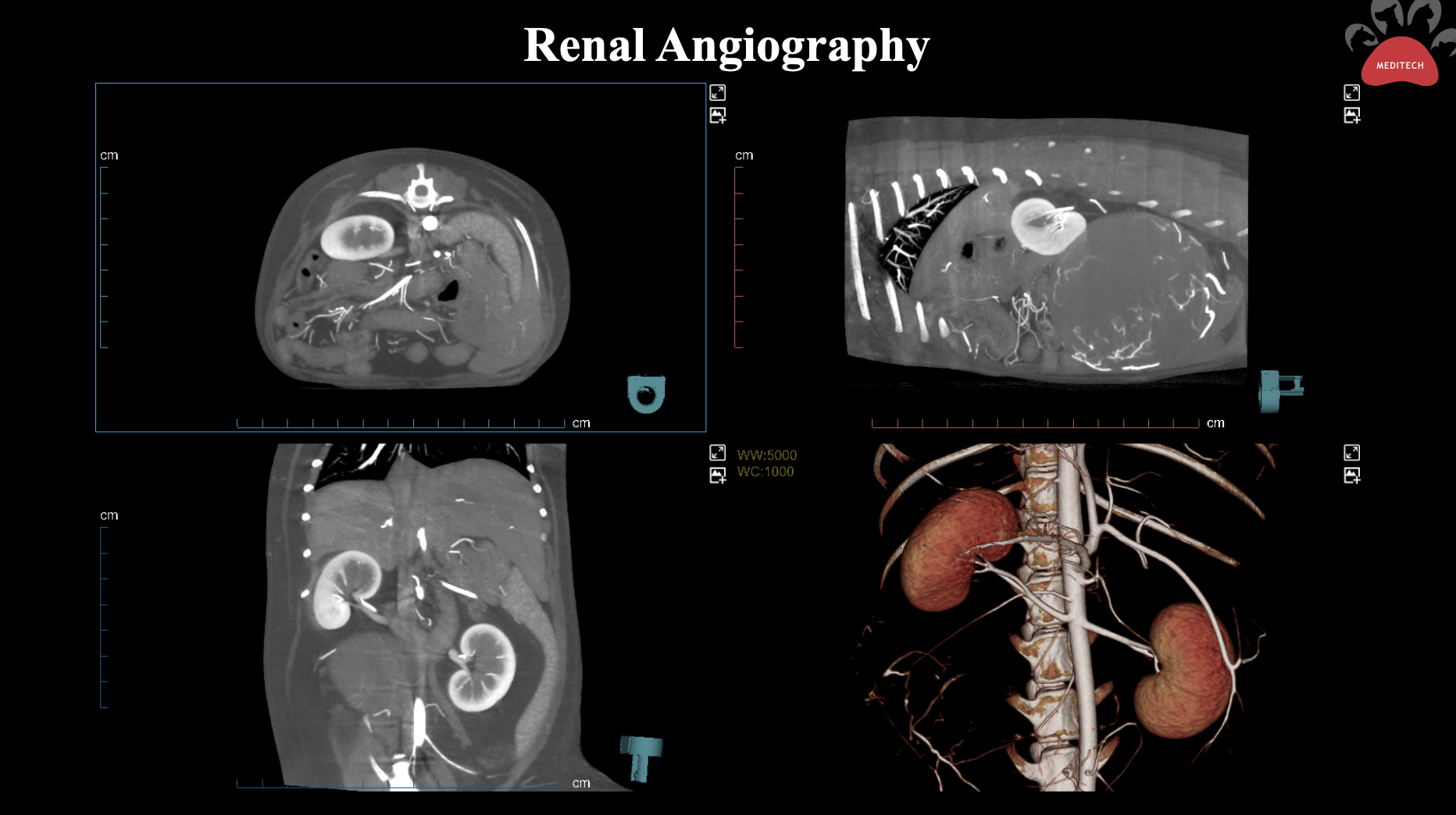

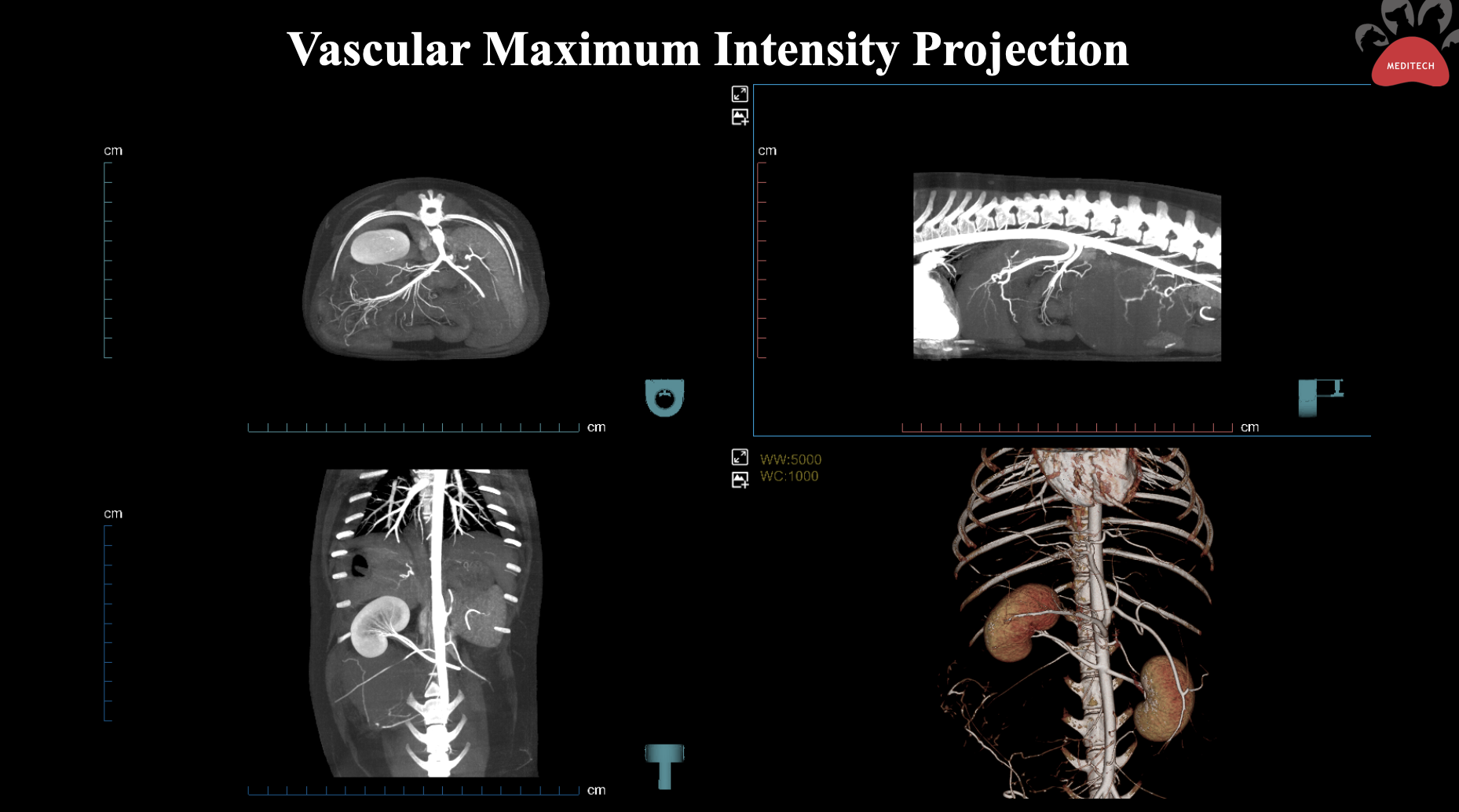

Vascular Imaging
Contrast imaging capabilities support evaluation of vascular structures, including selected angiography applications.

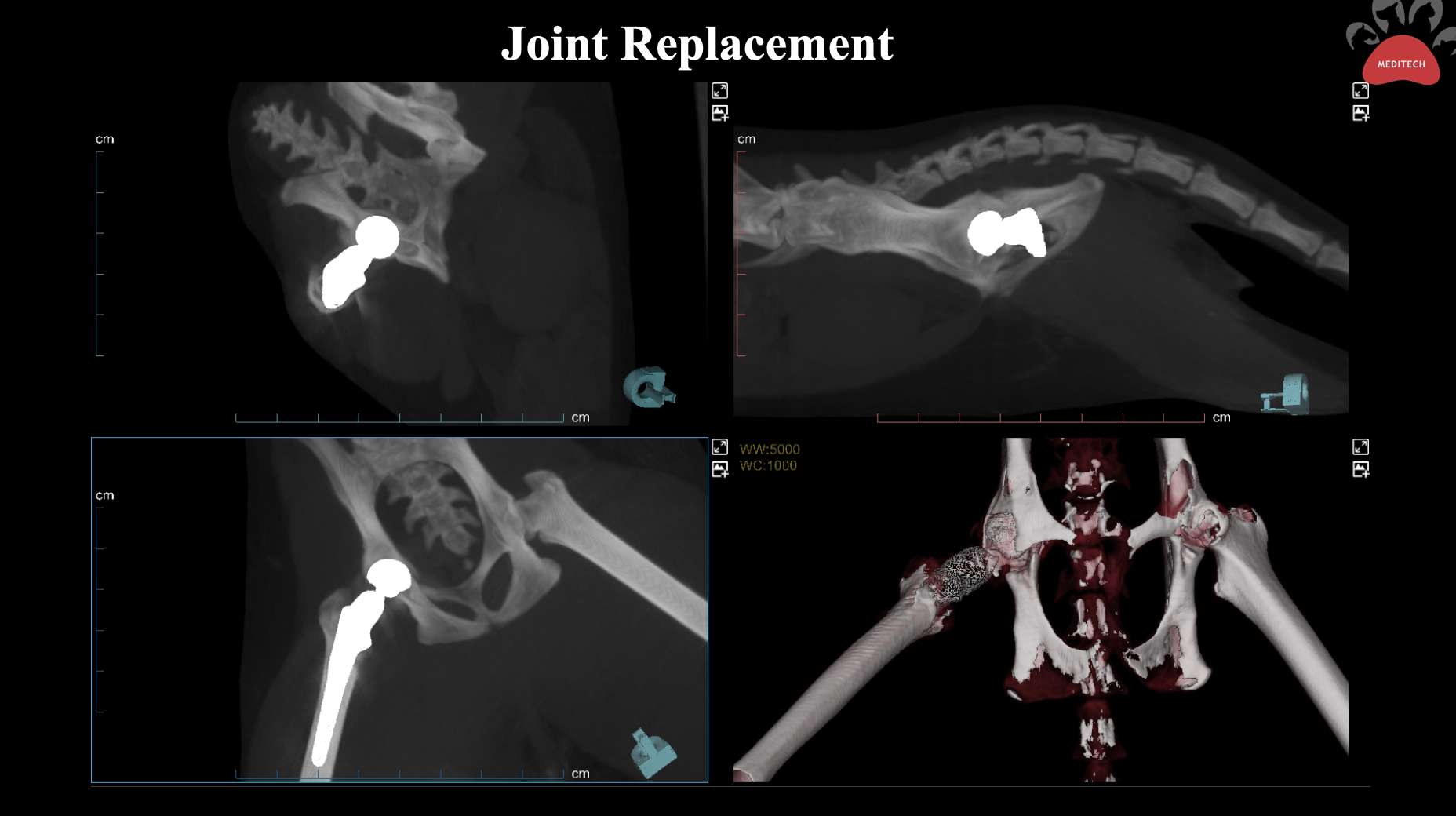

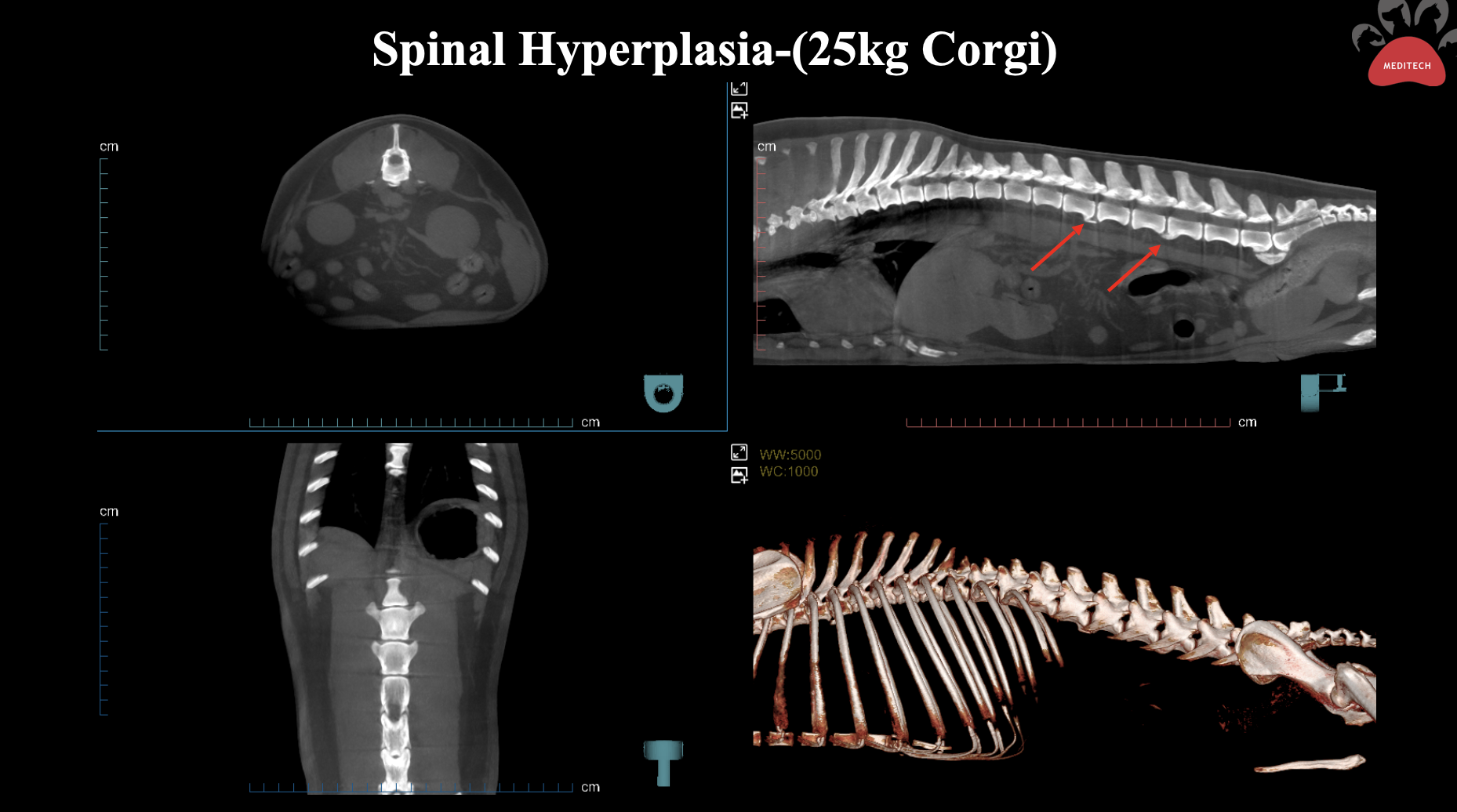

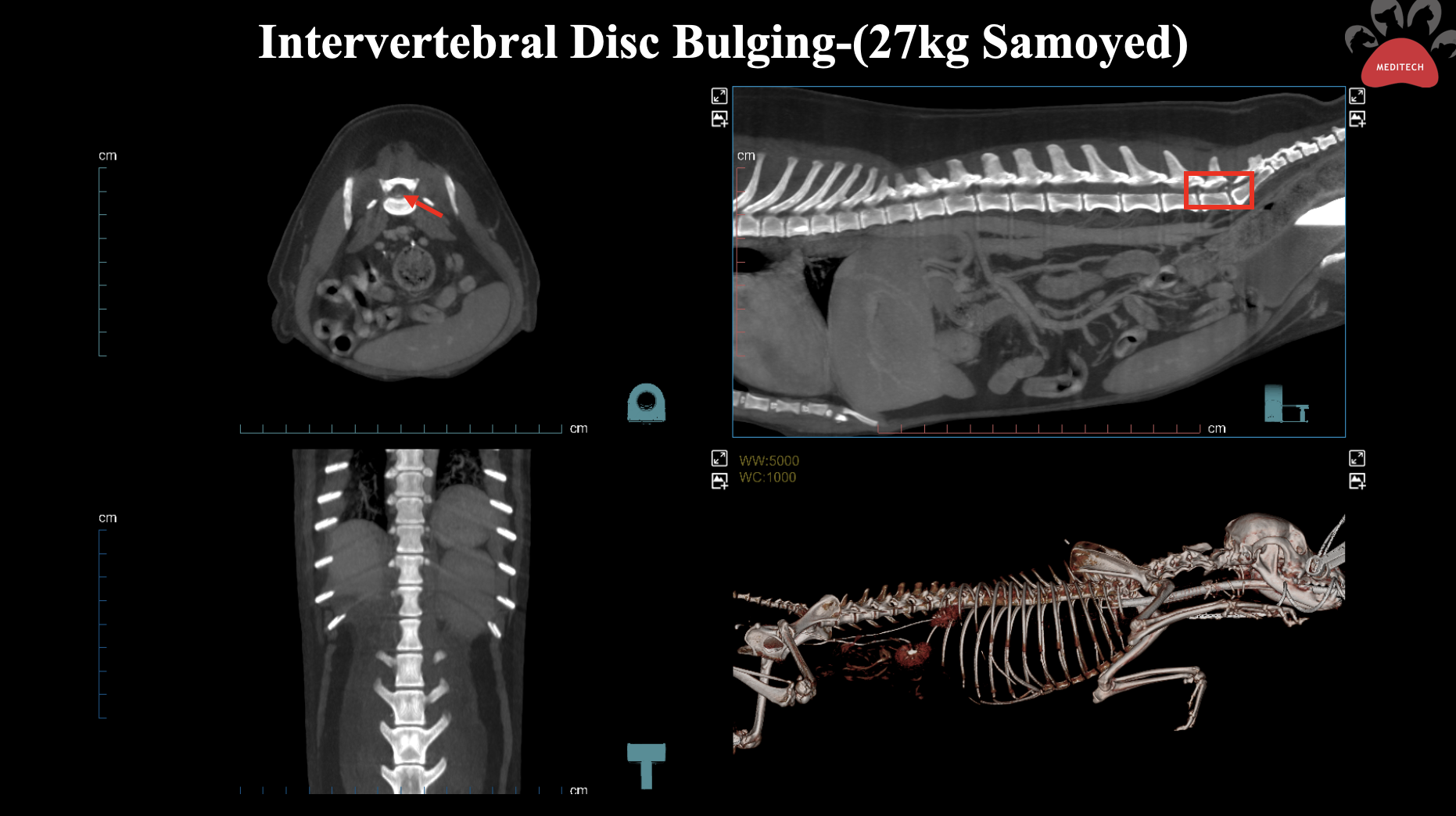

Spine and Orthopedic Imaging
Review spinal anatomy, vertebral abnormalities, fractures, and orthopedic structures using CT and reconstruction tools.

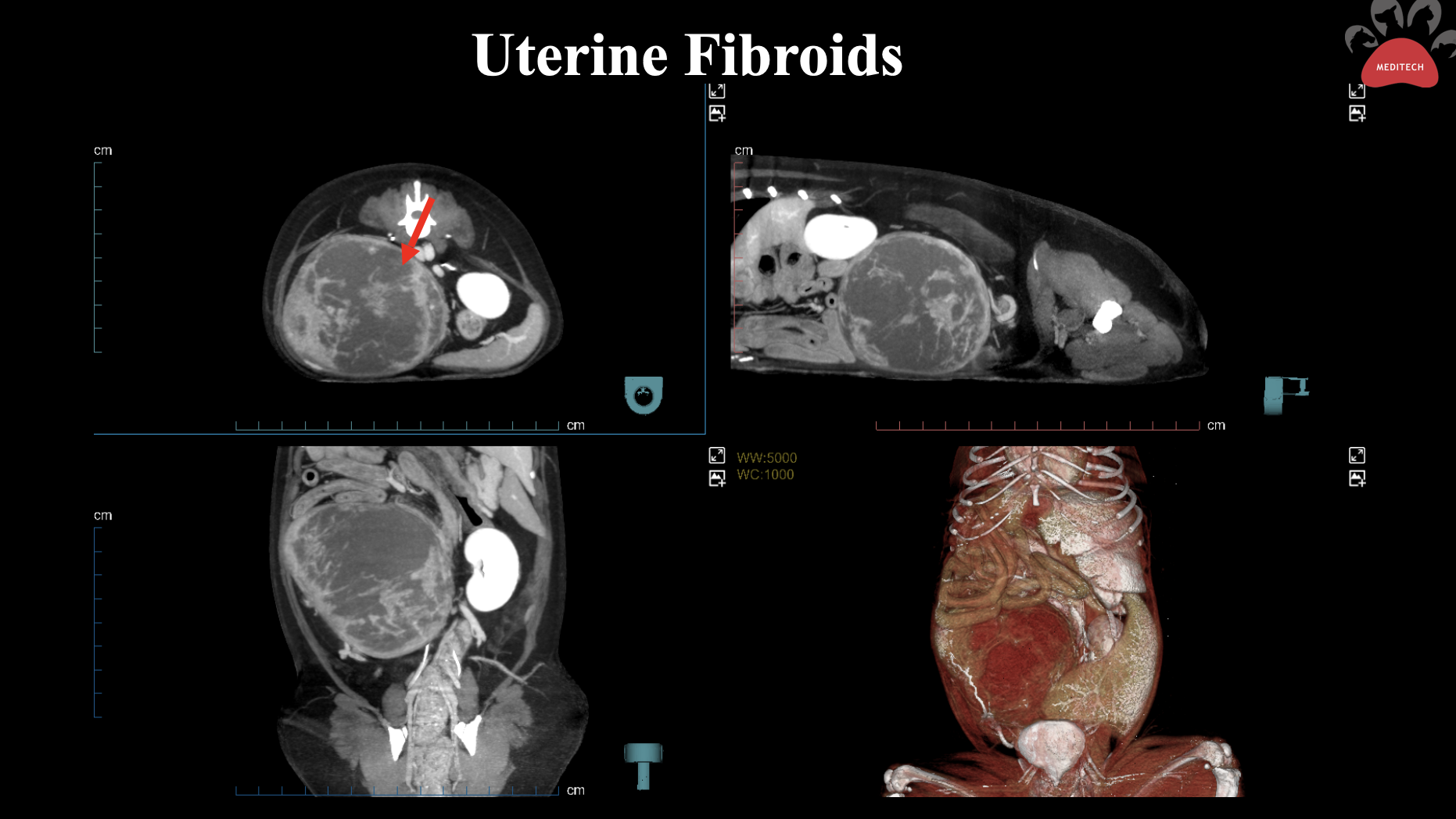

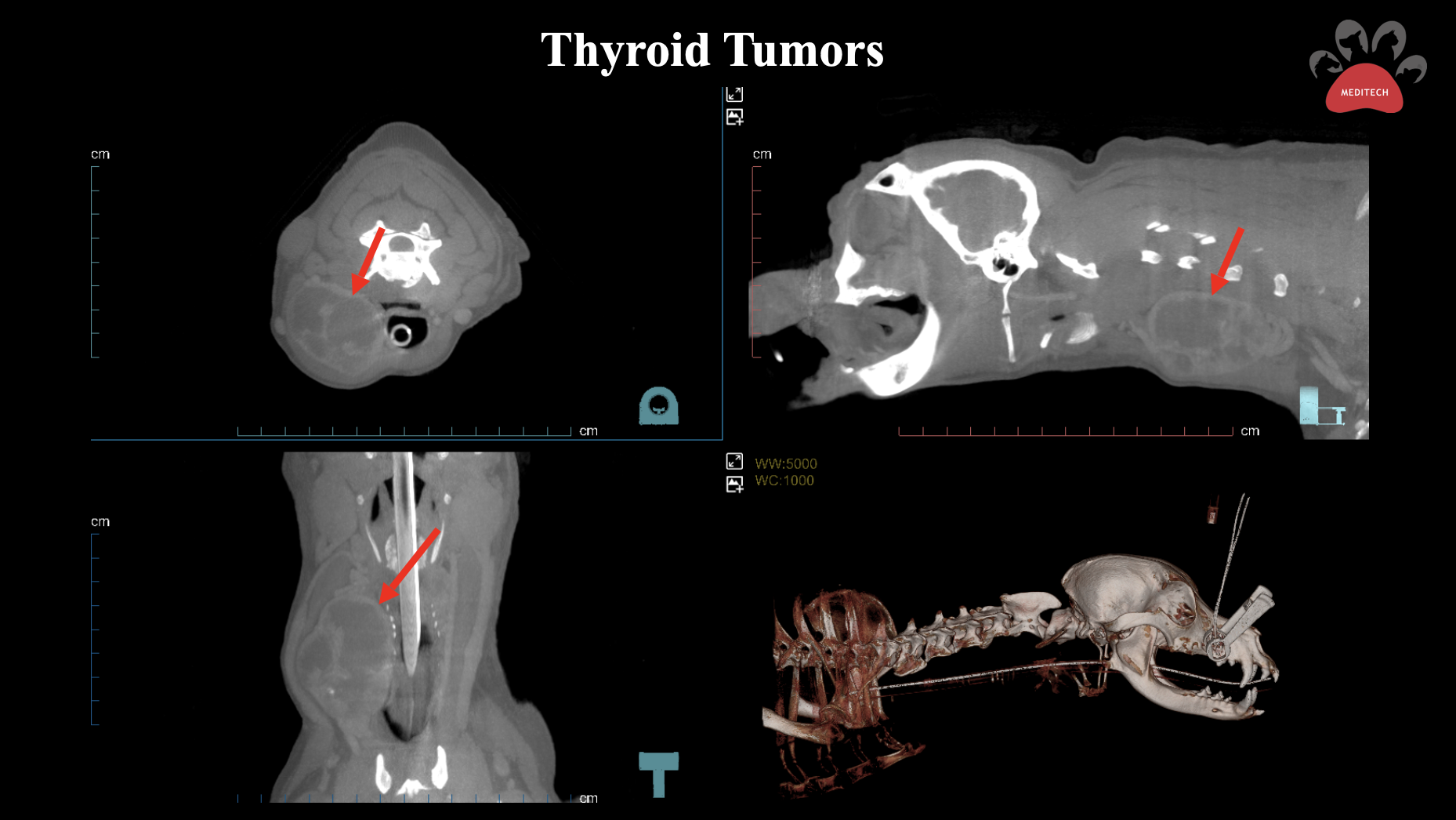

Tumor Evaluation
Detailed anatomical imaging supports evaluation of masses, tumors, and surrounding tissues when clinically indicated.
Thoracic Duct Imaging
Specialized imaging applications can help evaluate lymphatic anatomy and selected causes of chylothorax.
Vetist 3 Technical Specifications
Below are the key specifications from the updated Vetist 3 CBCT manufacturer's brochure.
CT and Imaging Specifications
| System Type | Veterinary Cone Beam CT (CBCT) |
|---|---|
| Imaging Modes | CT, DR, FL, Panoramic |
| Reconstruction Slices | 600–1,000 |
| CT Scan Time | 4.5 seconds |
| Minimum Slice Thickness | 0.2 mm |
| Minimum Pixel Size | 0.2 mm |
| Detector Matrix | 3072 × 3072 |
| Maximum FOV (L × W) | 72 × 42 cm |
| 3D Reconstruction | Supported |
| Respiratory Management | CT-AIR Breath-Hold Platform |
| Contrast Imaging | Triple-Phase Contrast Platform |
Gantry and Equipment Specifications
| Gantry Structure | O-shaped |
|---|---|
| Gantry Aperture | 80 cm (31.5 inches) |
| Nominal Power | 15 kW |
| Gantry Input Power | 220 ± 22 VAC |
| Tube Heat Capacity | 150 kJ |
| Maximum Tube Voltage | 120 kV |
| Tube Power | 15 kW |
| Approximate Equipment Width | 167 cm (65.75 inches) |
| Approximate Equipment Height | 170 cm (66.9 inches) |
| Approximate Equipment Depth | 191 cm (75 inches) |
Facility and Installation Requirements
Proper electrical service, room planning, and radiation shielding should be reviewed before installation.
| Required Voltage | 220 ± 22 VAC |
|---|---|
| Power Resistance | ≤ 0.5 ohm |
| Electrical Frequency | 50/60 Hz |
| Power Capacity | ≥ 15 kVA |
| Power Cable | 6 mm² |
| Manufacturer-Listed Lead Shielding | 3 mm lead equivalent |
| Operating Temperature | 10–35°C (50–95°F) |
| Operating Humidity | 30–75% RH, non-condensing |
| Air Pressure | 700–1060 hPa |
Technical specifications are based on the updated manufacturer's Vetist 3 CBCT brochure and are subject to confirmation. Equipment dimensions and installation clearances should be reviewed using the final site-planning drawings. Radiation shielding must be evaluated for the individual facility and applicable regulatory requirements.
More Imaging Capabilities for Your Practice
Adding advanced diagnostic imaging is an important investment. The right system should support your patients, your team, and your practice's long-term goals.
The Vetist 3 combines Cone Beam CT, digital radiography, fluoroscopy, and panoramic imaging in one system.
That flexibility can help your practice offer additional diagnostic imaging services while keeping more imaging examinations in-house.
At $175,000, the Vetist 3 also includes a 3-year warranty, technical support, software updates, Shield Plan, shipping, and installation.
Financing is available to help your practice plan this equipment investment.
These included services help simplify the purchasing process so you can focus on choosing the right imaging solution for your veterinary practice.
Interested in the Vetist 3?
Let's discuss whether this advanced veterinary Cone Beam CT imaging system is a good fit for your practice.
Contact Brad Haven, Jr. at New Vet Equipment to ask questions about the system, installation requirements, financing, or purchasing options.
