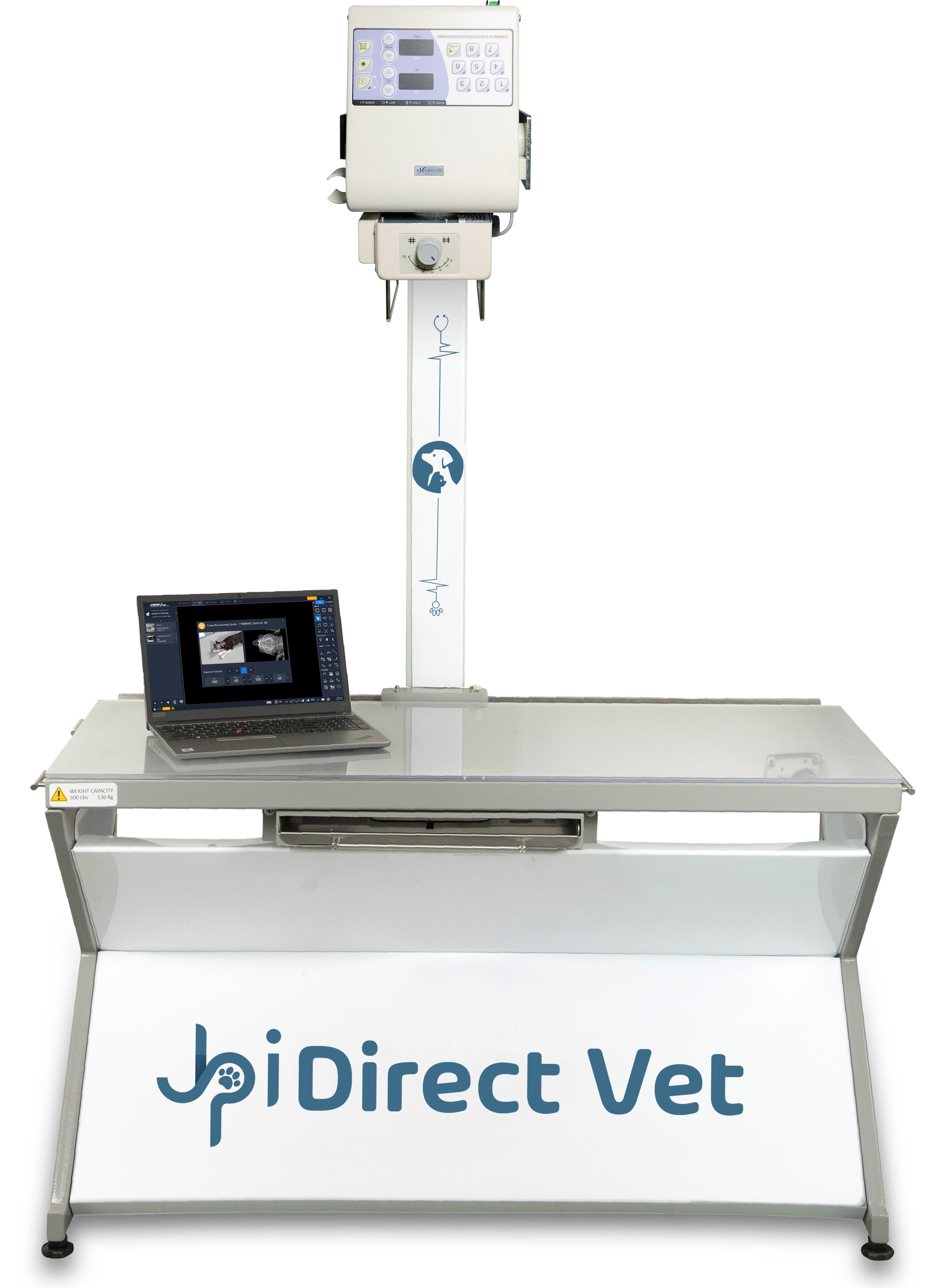

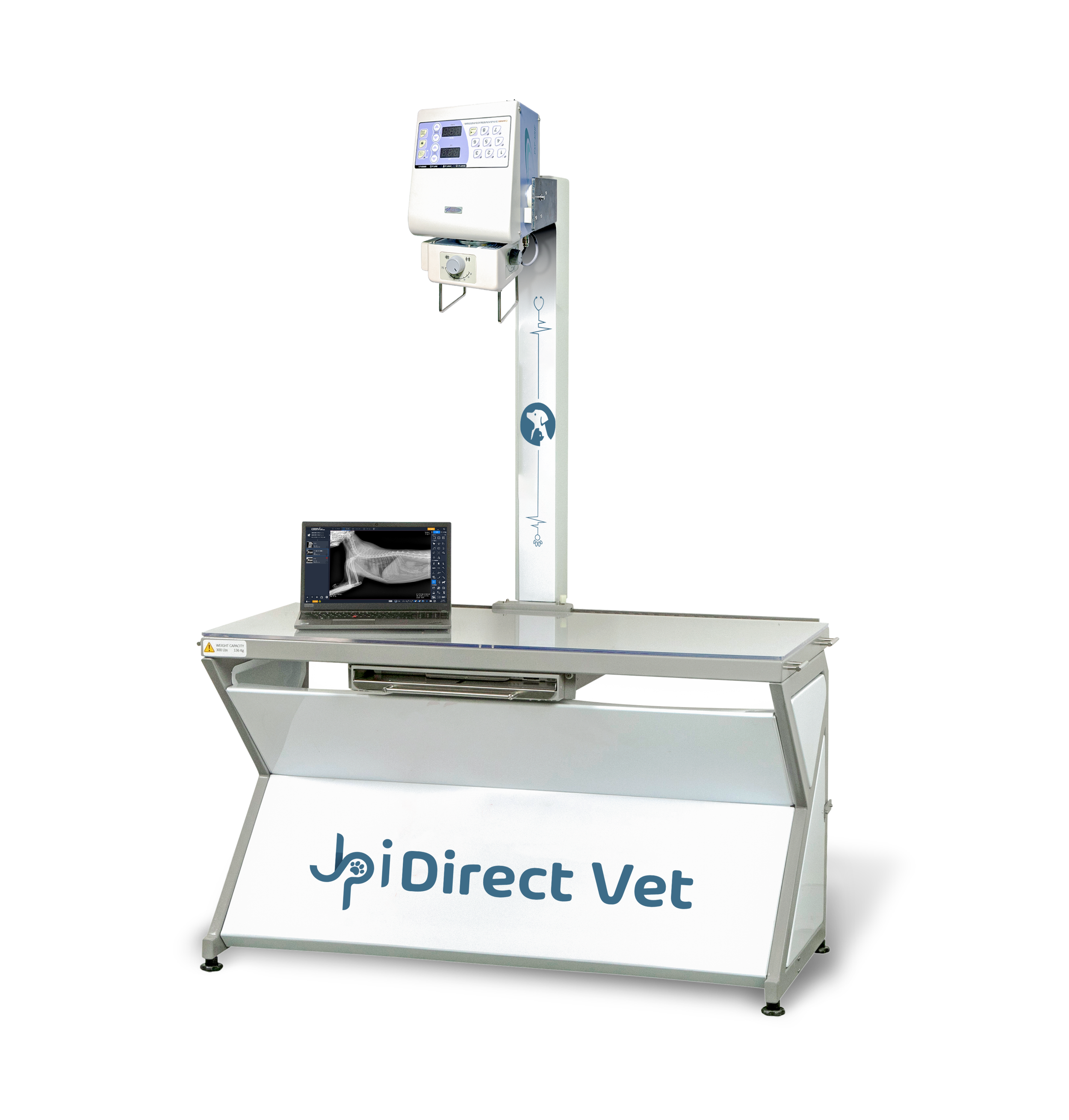

JPI DirectVet DR X-Ray

A Complete Digital X-Ray Package for Veterinary Practices

$29,995 / $495 mo.

Complete package • Free shipping • 5-year warranty

Purchase / Ask Questions Call 877-545-1202

A Complete Package for Your Clinic

The JPI DirectVet DR X-Ray is designed to give veterinary practices a straightforward way to upgrade to digital radiography.

This complete package gives your team the core equipment needed for clear digital X-ray imaging, with free shipping and a 5-year warranty included.

Package Price: $29,995 / $495 mo.
Free shipping and 5-year warranty included.

The DirectVet Generator and Detector system delivers high-quality digital X-ray imaging in a compact, space-saving design. Designed for veterinary practices, it provides a streamlined workflow for capturing, viewing, interpreting, and sharing diagnostic images.

Key Features

Electrical Requirement: 15- or 20-amp dedicated 110V outlet.

100 kVp Maximum Output

Powerful imaging capabilities for patients ranging from small cats to large dogs.

Smart Positioning Guides

Built-in guides simplify setup and help ensure precise positioning.

Compact Design

Fits easily into veterinary clinics without requiring extensive space.

Standard Power

Operates on a regular 110V outlet with a dedicated electrical line.

User-Friendly Interface

Quick and simple setup helps save time and keep the focus on patient care.

Convenient Diagnostic Functions

Easy image access, interpretation, and sharing with tools such as VHS, TPA, VLAS, and more.

ExamVue™ Duo Software

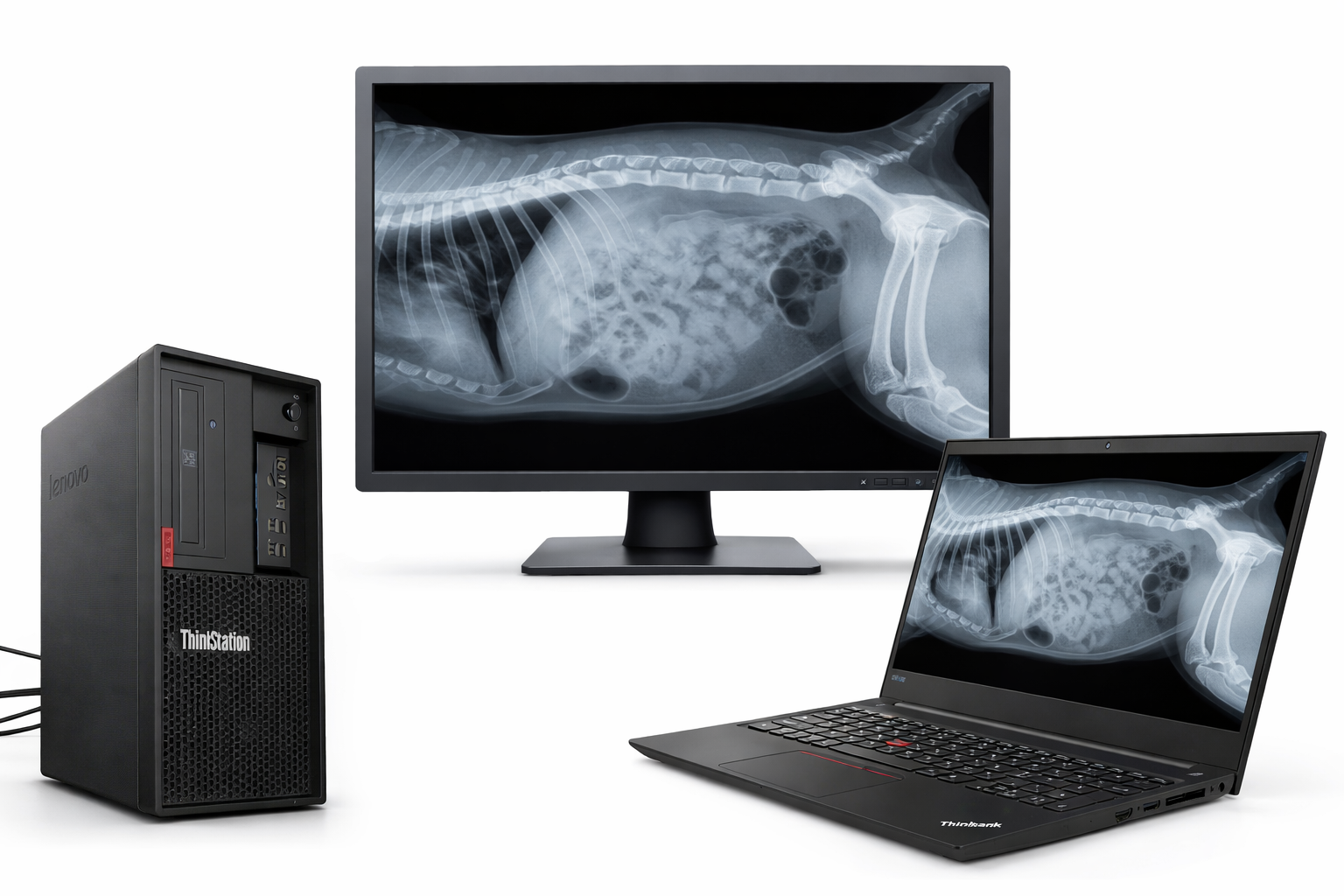

DirectVet pairs seamlessly with ExamVue™ Duo, providing high-resolution digital images that can be emailed or sent to DICOM-compliant practice management software.

Software Features Include:

Image viewing and interpretation
Email X-rays to pet owners
ROI Zoom and Window tools
Auto-Stitching
Report generation
Specialty tools for companion animals and equine patients
DICOM-compatible image sharing to send to radiologists of your choice.

Additional Benefits

Designed specifically for veterinary professionals
High-quality digital imaging
Lightweight, space-saving equipment
Easy-to-learn software interface
Streamlined workflow for efficient diagnostics

ExamVue Duo software is open X-ray acquisition software that can work with any PACS. The most common are:

IDEXX Web PACS, Asteris Keystone PACS, Sound-Eklin SmartPACS, VetRocket RocketPACS, RAD365 Veterinary PACS, PaxeraVet, Vetology AI, ESAOTE VetPACS, VET.CT VetPACS, AdvaPACS, NovaPACS, dicomPACS vet, MedDream VET, VisioPACS, MiniPACS, Orthanc, OsiriX MD, Horos, Ambra Health, Carestream Vue PACS.

Many of these PACS allow our X-ray images to be stored in the patient record of these veterinary practice management software systems. Here are some of the most common:

IDEXX Cornerstone, AVImark, ezyVet, Covetrus Pulse, ImproMed, IDEXX Neo, Shepherd, Vetspire, DaySmart Vet, NaVetor, Digitail, Provet Cloud, VETport, Hippo Manager, VetBlue, IntraVet, DVMAX, StringSoft, ClienTrax, VIA (Veterinary Information Administration).

Detector

Detector Type	17" x 17" Tethered
Scintillator	Direct Deposit CsI
Active Area	16.8" x 16.8"
Pixel Pitch	140 µm
Limiting Resolution	3.4 lp/mm
MTF	>77% (@ 0.5 lp/mm)
DQE	>72% (@ 1 lp/mm)
Dimensions	18.1" x 18.1" x 0.59"
Weight	7.7 lbs
A/D Conversion	16 bits

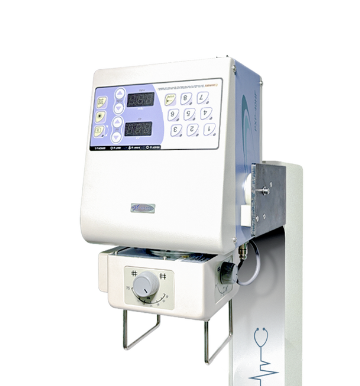

X-Ray Generator

Output Power	2.4 kW
Input Power	100–120 V / 200–240 V
Phase & Frequency	Single-phase / 50–60 Hz
Radiography kV Range	40–100 kV
mAs Range	0.4–100 mAs (35 steps)
Maximum kV Deviation	±7%
Maximum mAs Deviation	±(7% + 0.2 mAs)
Display	kV (error code) / mAs, 7-segment LED
Exposure Control	F2AED

X-Ray Tube

Focal Spot	1.2 mm / 1.2 mm
Target Angle	16°
Anode Heat Content	14 kJ
Collimator	Double-slit type, manual operation
Minimum X-Ray Field Size	<5 cm x 5 cm @ 1 m SID
Maximum X-Ray Field Size	<47 cm x 47 cm @ 1 m SID
Collimator Light	3.3 V LED lamp
Illuminator Timer	Push-button, 30-second timer
Dimensions	16.5" x 9.8" x 7.8"
Product Weight	26.4 lbs

Table

Weight Capacity	Up to 300 lbs
Table Weight	230 lbs
Dimensions	32" (H) x 54" (W) x 24" (D)
Cassette Tray SID	40"
Tabletop SID	38"
