Alpha HV Complete Dental Cleaning Station

$3800.00 shipping and delivery included

3-Year Warranty

Call: 877-545-1202

Alpha HV Complete Dental Cleaning Station

(Made by Cuspid Equipment and Services)

Alpha HV offers plenty of room for easy access to tools and supplies, while it is narrow enough not to be in the way.

It is designed for a high-volume environment and advanced procedures.

20” x 15” work surface

Dimensions: Height: 29” Width: 21” Depth: 19” Weight: 68 lbs

The base configuration includes the following features:

  • Automatic Handpiece selection and simple and intuitive layout.

  • This dental station is operated from a single foot pedal, and it knows when a specific handpiece is picked up.

  • Ultrasonic Scaler with built-in LED illumination.

  • Light automatically turns on when the scaler is in use; this makes the meticulous task of removing tartar much easier, faster, and more satisfying.

  • Five scaler tips are included, and additional tips can be purchased from any major distributor.

  • High-speed push/release-type Drill with built-in E-generated LED illumination. Light automatically turns on when the drill is in use, and its self-contained design is more durable than a standard fiber-optic system. Maximum speed -- 280,000 RPM

  • A low-speed handpiece (polisher) comes with two attachments: a strait cone (compatible with a variety of polishers) and a Contra Angle built-in E-generated LED illumination. A box of polishing tips is included. Unique feature: While lighted handpieces are not a novelty, this dental station is the only one of its kind that offers LED light on a Polisher!

  • Air/Water Syringe with Air, Irrigation, and Mist options.

  • Weak suction. It is designed to remove small pockets of water and saliva from the oral cavity. It can be used as a standalone feature or in conjunction with a drill or scaler. Low suction pressure and a self-contained system make it very safe to use on all patients.

  • Oil-Free Air compressor with a 2-gallon reservoir tank. It is quiet at ~61 decibels; one will know that it is on, but a conversation can be held next to the unit when it is engaged. (Included)

  • Oil-Lubricated Compressor (+$850) with a 2-gallon reservoir tank. Rated at ~41 decibels it is whisper quiet, and it is ideal for environments where any additional noise creates an inconvenience. (extra)

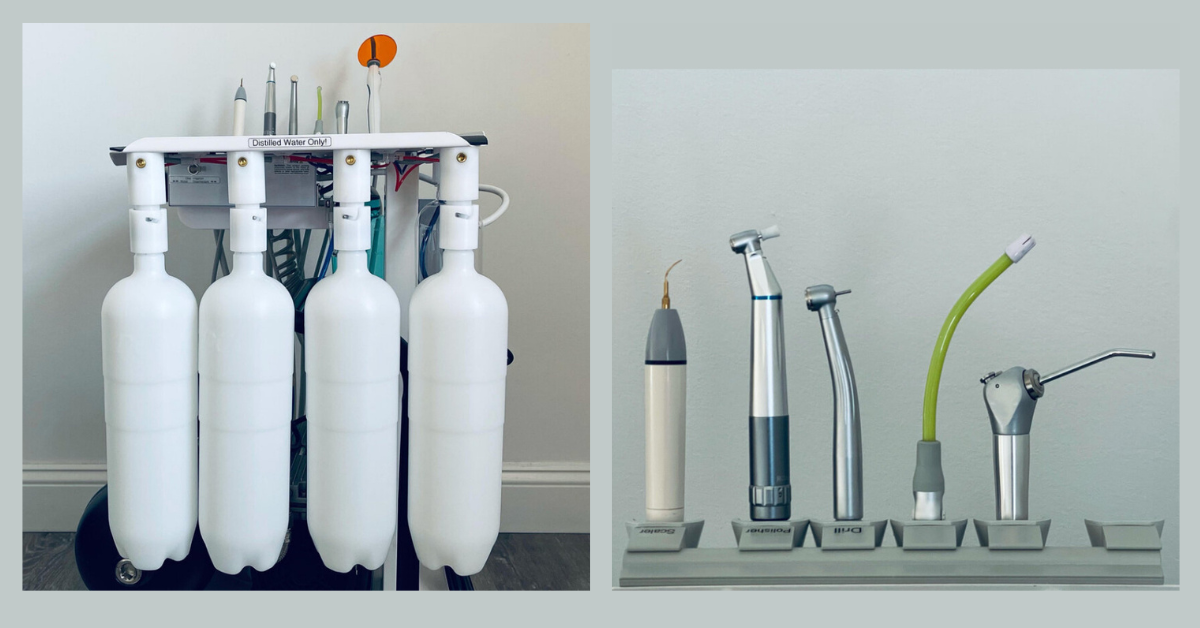

  • Four 2-liter Distilled Water Reservoirs are connected in series for a total of 8-liter capacity!

  • This is the largest capacity of any self-contained dental station currently on the market. This supply will last for multiple procedures, and all reservoirs are equipped with a quick disconnect adapter making them easy to refill.

  • Unique feature: Having multiple Distilled Water Reservoirs on a dental station is not a unique feature, however, only one of them can be used at a time.

  • Once it runs out, a user has to flip a switch to engage the next one. This dental station eliminates the former; access to the full storage capacity is automatic, and it eliminates frequent interruptions.

  • Auxiliary water connector for a standalone scaler.

  • Minimalistic design with an abundance of storage. One 8.5" x 3" storage compartment provides plenty of room to store all the necessities.

  • A compressor can be easily removed from the bottom shelf of the cart and placed up to 30 feet away from the dental unit.

  • Sturdy design with service in mind. All components are mounted on a stainless steel cart.

  • Additional hose length and twin-bolt mounting mechanism allow the enclosure that holds all the components to be easily detached and placed on the working surface, thus allowing for ease of maintenance.

  • The internal layout allows for easy component replacement by anyone equipped with a Phillips-head screwdriver.

    All the handpieces are included, as well as the following accessories:

  • Prophy Polishing Cups (100 ct)

  • Assorted pack of high-speed burs (10 ct)

  • Assorted Scaler Tips (6 ct)

  • Suction Attachments (100 ct)

Three-year parts only Warranty

Additional features can be added to the Alpha HV:

Add $150. - Built-in Oral Irrigation System. This feature adds a 1-liter reservoir that can be filled with an oral disinfectant of choice, and the latter to be used to flush the patient’s oral cavity.

Add $200. - Built-in Curing Light and Endodontics-featured Scaler. A resin curing light is hardwired to the dental unit.

Add $350. - Additional High-Speed Drill Connection.

Add on: $800. Additional High-Speed (Drill) option, Built-in Oral Irrigation System, Curing Light, Endodontics-featured Scaler

Each unit is built to order, and it is usually shipped within 21 business days.
